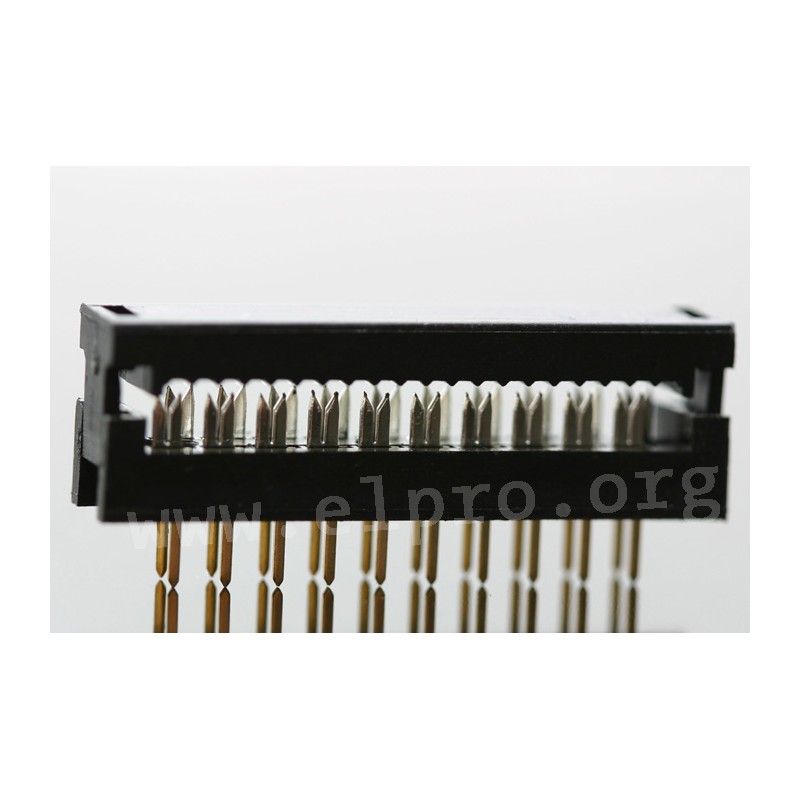

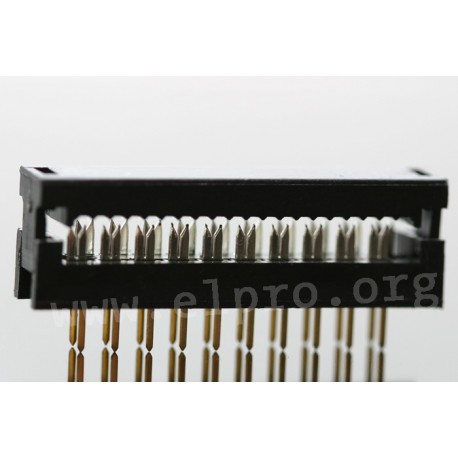

AWLP 20

PC-connectors for flat cables

• pitch: 2.54mm
• insulation body: PBT, glass filled (UL94V-0)
• contact material: brass
• contact surface: tin over nickel
• rated current: 1A
• test voltage: 500V AC
• insulation resistance (500V): 1000MΩ
• temperature range: -40...+105°C

suitable female headers


SPTC_
• insulation shell: PBT 20% glass-filled, grey
• contact material: copper alloy
• contact surface: tin-plated
• rated current: 1A
• insulation resistance (100V): 5000MΩ
• test voltage: 1000V eff.
• temperature range: -40...+105°C
• by Speed
AWLP 20

AWLP 20

7149 AWLP 20 AWLP 20/3,2-T AWLP 20/3,2-T PC-connectors for flat cables. * pitch: 2.54mm* insulation body: PBT, glass filled (UL94V-0)* contact material: brass* contact surface: tin over nickel* rated current: 1A* test voltage: 500V AC* insulation resistance (500V): 1000MΩ* temperature range: -40...+105°Csuitable female headersSPTC_* insulation shell: PBT 20% glass-filled, grey* contact material: copper alloy* contact surface: tin-plated* rated current: 1A* insulation resistance (100V): 5000MΩ* test voltage: 1000V eff.* temperature range: -40...+105°C* by Speed

Specifications

manufacturer
Manufacturer's name AWLP 20/3,2-T
Number of poles 20

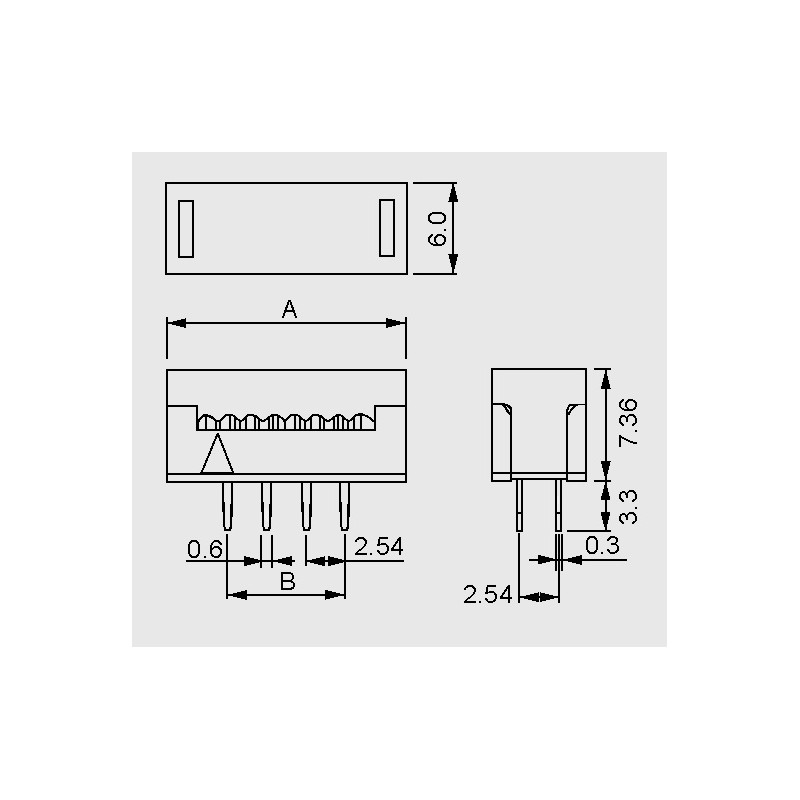

A [mm] 30,8
Width [mm] 22,86

Unit price

0,33 €

Stock: 4.963
Further delivery:
CW 34/2025

Minimum order quantity 1 to 4 units or multiples of 9 plus 0 to 4 .
