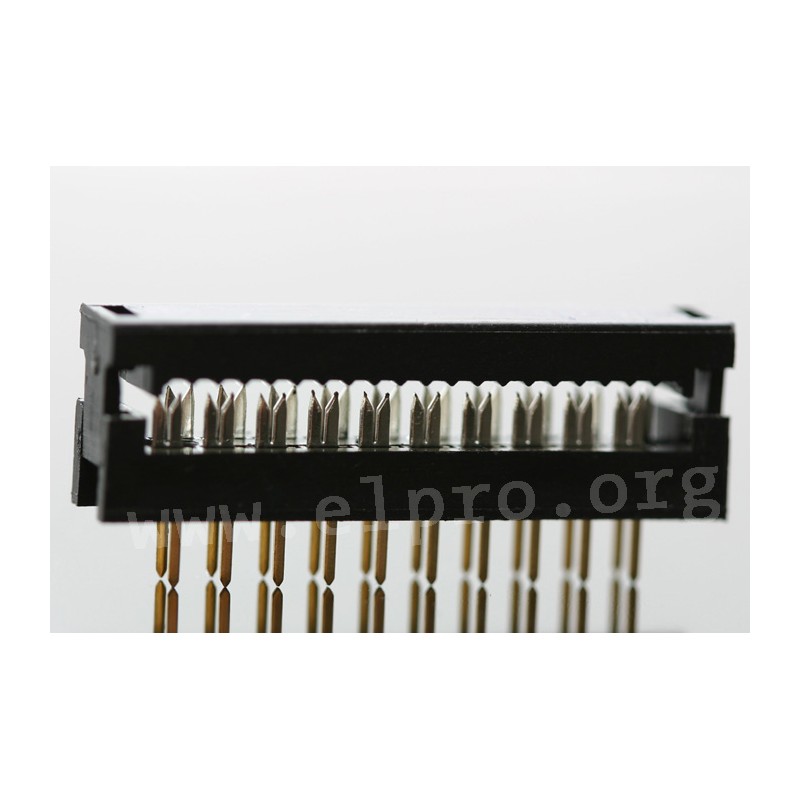

AWLP 16

PC-connectors for flat cables

• pitch: 2.54mm
• insulation body: PBT, glass filled (UL94V-0)
• contact material: brass
• contact surface: tin over nickel
• rated current: 1A
• test voltage: 500V AC
• insulation resistance (500V): 1000MΩ
• temperature range: -40...+105°C

suitable female headers

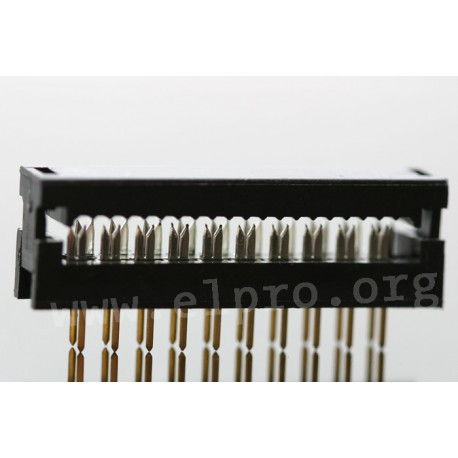

AWLP_

AWLP 16

7148 AWLP 16 AWLP 16/3,2-T AWLP 16/3,2-T PC-connectors for flat cables. • pitch: 2.54mm• insulation body: PBT, glass filled (UL94V-0)• contact material: brass• contact surface: tin over nickel• rated current: 1A• test voltage: 500V AC• insulation resistance (500V): 1000MΩ• temperature range: -40...+105°Csuitable female headers

Specifications

manufacturer
Manufacturer's name AWLP 16/3,2-T
Number of poles 16

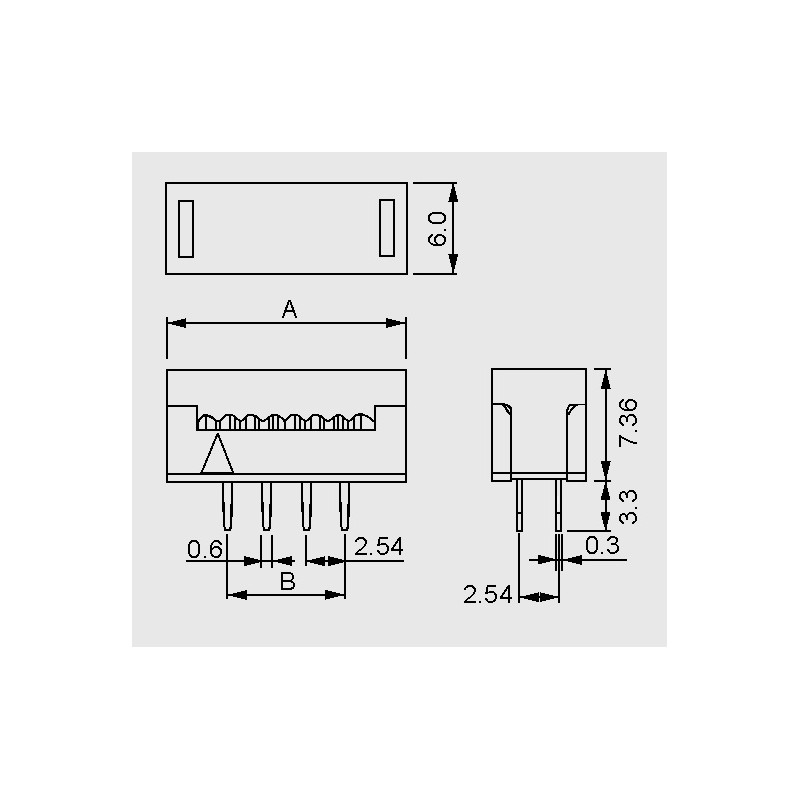

A [mm] 25,72
Width [mm] 17,78

Unit price

0,306 €

Stock: 1082
Further delivery:
CW 14/2025

Minimum order quantity 1 to 2 units or multiples of 10 plus 0 to 2 .
