AMET-09 RS

 D-sub metal backshells by Assmann WSW

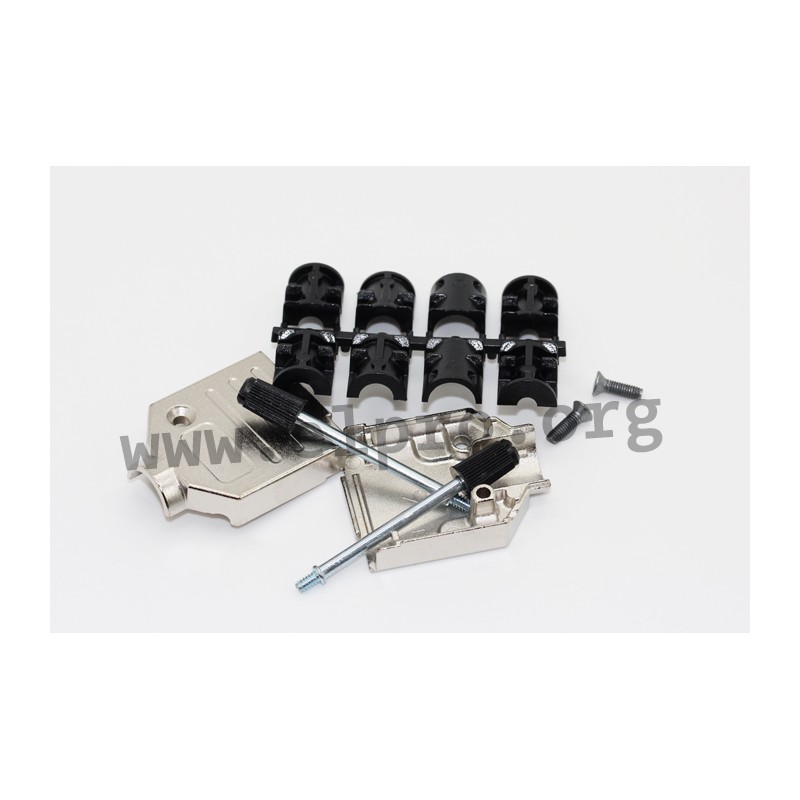

EMV tested complete metal hood made of nickel-plated zinc die-casting with two knurled thumb screws (UNC4-40) for D-sub connections. We are offering the following types with straight cable exit by Assmann WSW: AMET-09 RS, AMET-15 RS, AMET-25 RS and AMET-37 RS.

* attentuation factor: >40dB between 30MHz and 1GHz
* cable diameter: 4.0 to 9.0mm
* operating temperature range: -40 to +120°C

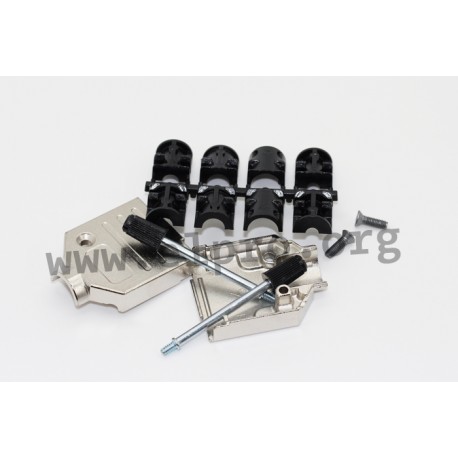

AMET-09 RS, metal, straight cable outlet, EMV, by Assmann

AMET-09 RS

110837 AMET-09 RS AMET-09 RS  D-sub metal backshells by Assmann WSW. EMV tested complete metal hood made of nickel-plated zinc die-casting with two knurled thumb screws (UNC4-40) for D-sub connections. We are offering the following types with straight cable exit by Assmann WSW: AMET-09 RS, AMET-15 RS, AMET-25 RS and AMET-37 RS. * attentuation factor: >40dB between 30MHz and 1GHz* cable diameter: 4.0 to 9.0mm* operating temperature range: -40 to +120°C

Specifications

manufacturer
Manufacturer's name AMET-09 RS
Number of poles 9
A [mm] 31,2
B [mm] 47,3
C [mm] 14,6
Data Sheet

Unit price

3,19 €

Stock: 250
Next incoming goods:
CW 49/2024
1500 units

Further delivery:
CW 52/2024

Minimum order quantity 5 units or
multiples of 5.
