> Passive elements>D-subminiature connectors>D-subminiature backshells>Assmann D-sub backshells, plastic, straight cable outlet, with screws, A-FT series>A-FT 15

Manufacturers

A-FT 15

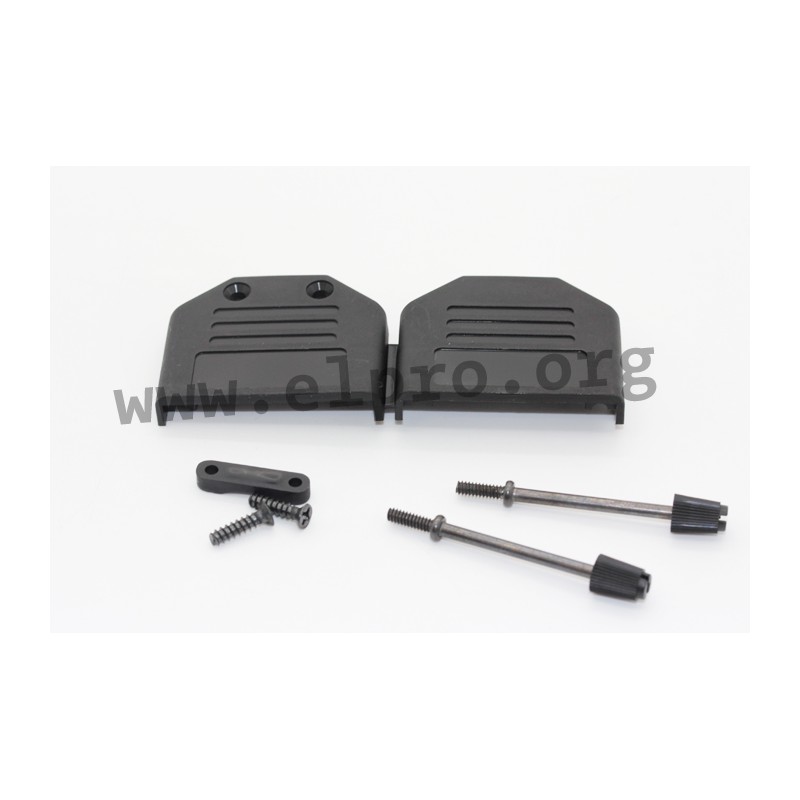

D-sub plastic backshells by Assmann WSW

The two-piece hood, connected backshell with two knurled thumb screws UNC4-40 is characterized by a screwable strain relief from the exterior. The hood can be assembled quickly thanks to snap-in shell halves. We are offering the following types by Assmann: A-FT 09, A-FT 15 and A-FT 25.

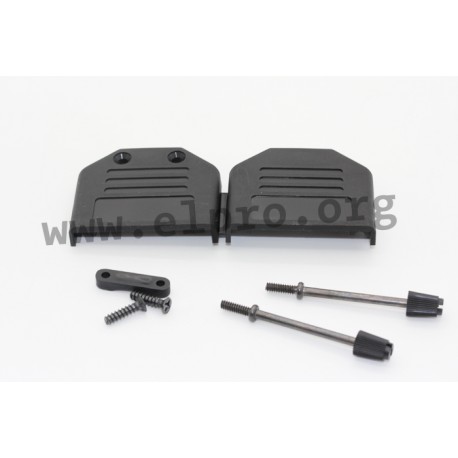

A-FT 15, Assmann D-sub backshells, plastic, straight cable outlet, with screws, A-FT series

A-FT 15

110850 A-FT 15 A-FT 15 D-sub plastic backshells by Assmann WSW. The two-piece hood, connected backshell with two knurled thumb screws UNC4-40 is characterized by a screwable strain relief from the exterior. The hood can be assembled quickly thanks to snap-in shell halves. We are offering the following types by Assmann: A-FT 09, A-FT 15 and A-FT 25.

Specifications

manufacturer
Manufacturer's name A-FT 15
E [mm] 32,8
Number of poles 15
A [mm] 42,2
D [mm] 14,5
B [mm] 33,32
C [mm] 10,5
Data Sheet

Unit price

1,06 €

Stock: 207
Next incoming goods:
CW 01/2025
100 units

Further delivery:
CW 08/2025

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
