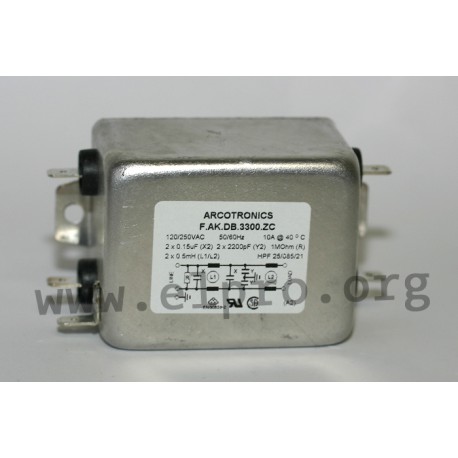

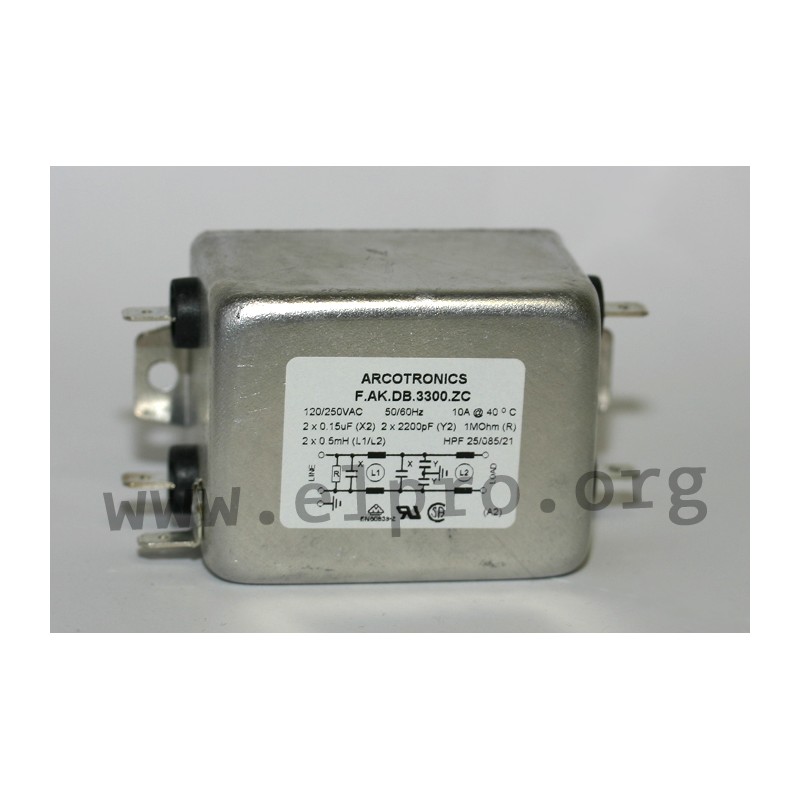

FAK.DB.3300.ZD000

suppression filters with faston terminals

• compact size
• universal application
• rated current: 250V (50/60Hz)
• operating temperature range: -25 to +85°C

• top-quality metal housing
• faston plug terminal 6.3x0.8mm

FAK.DB.3300.ZD000

109995 FAK.DB.3300.ZD000 FAKDB3300ZD000 FAKDB3300ZD000 suppression filters with faston terminals. • compact size• universal application• rated current: 250V (50/60Hz)• operating temperature range: -25 to +85°C• top-quality metal housing• faston plug terminal 6.3x0.8mm

Specifications

manufacturer
Manufacturer's name FAKDB3300ZD000
Resistance [MΩ] 1
inductance [mH] 2x0,5
Rated current [A] 20
CX [µF] 0,15
Leakage current [mA] 2x0,2
CY [pF] 2x2200
Data Sheet

Unit price

33,09 €

Stock: 12
Further delivery:
CW 27/2025
