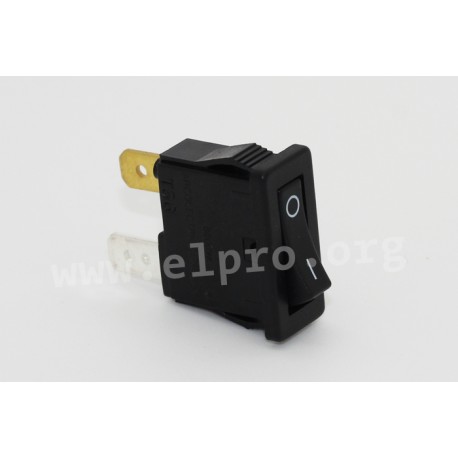

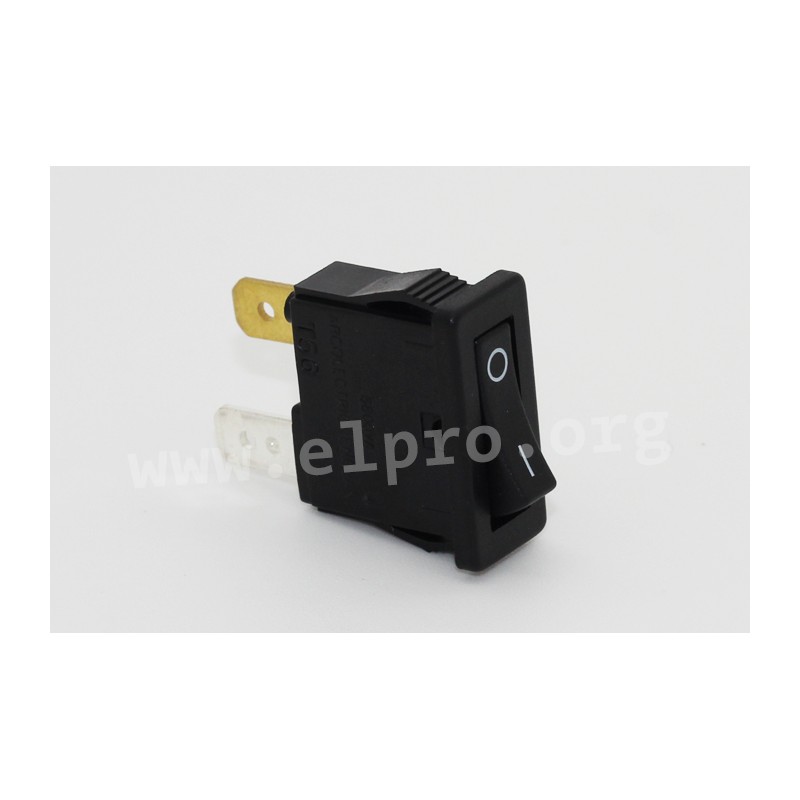

H8800VAAAB

arcolectric rocker switches

These rocker switches in 1-pole design are ideal for 6.9x17.5mm panel cut-out. The connector dimensions are 4.8x0.8mm.

• operating voltage, max.: 250V AC
• switching current, max.: 10A
• switching current at inductive load, max.: 6A
• inrush current (EN61058-1): 10A
• ambient temperature, max.: 125°C
• insulation resistance: >20MΩ
• contact resistance: (New State, 12V DC/1A): <100mΩ
• contact gap: 3mm
• soldering conditions (hand soldering): 350°C/6s
• flammability class: UL94V2

materials:
• shell and rocker: nylon 6.6
• current-carrying part: Cu alloy
• contacts: silver-plated

H8800VAAAB

H8800VAAAB

107660 H8800VAAAB H8800VAAAB arcolectric rocker switches. These rocker switches in 1-pole design are ideal for 6.9x17.5mm panel cut-out. The connector dimensions are 4.8x0.8mm. • operating voltage, max.: 250V AC   • switching current, max.: 10A • switching current at inductive load, max.: 6A• inrush current (EN61058-1): 10A  • ambient temperature, max.: 125°C• insulation resistance: &gt;20MΩ  • contact resistance: (New State, 12V DC/1A): &lt;100mΩ  • contact gap: 3mm • soldering conditions (hand soldering): 350°C/6s• flammability class: UL94V2 materials:• shell and rocker: nylon 6.6  • current-carrying part: Cu alloy  • contacts: silver-plated

Specifications

manufacturer
Manufacturer's name H8800VAAAB
Function 1 x E/A
Case colour black
Rocker black
Rocker imprint I/O
Data Sheet

Unit price

1,55 €

Stock: 550
Further delivery:
CW 17/2025

Minimum order quantity 10 units or
multiples of 10.
