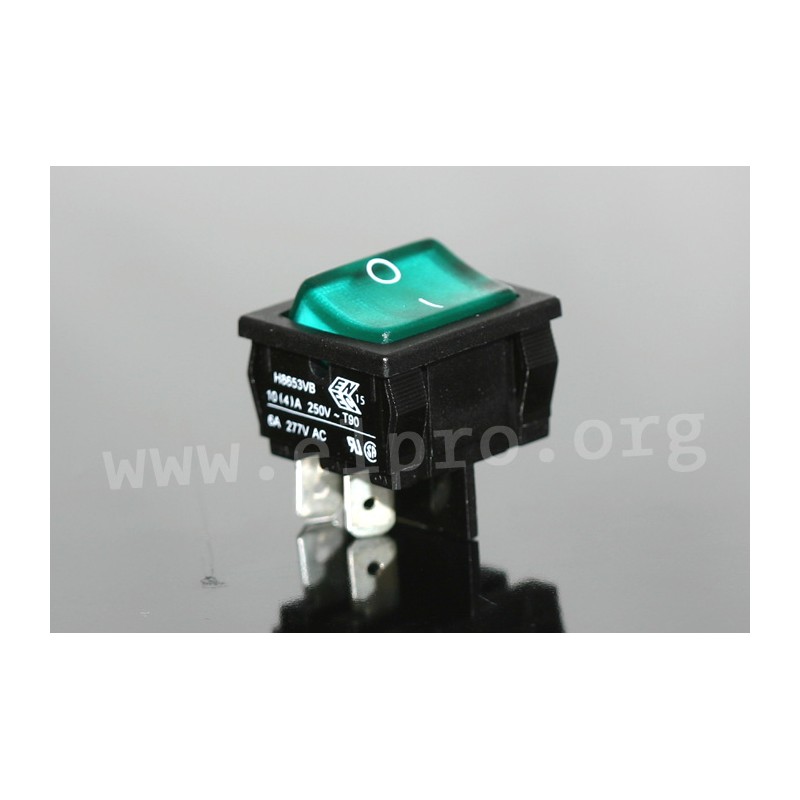

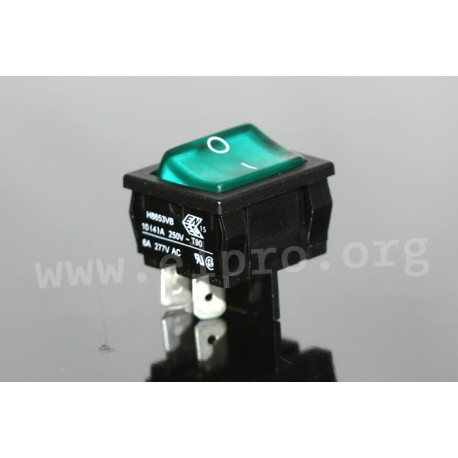

WNX 13

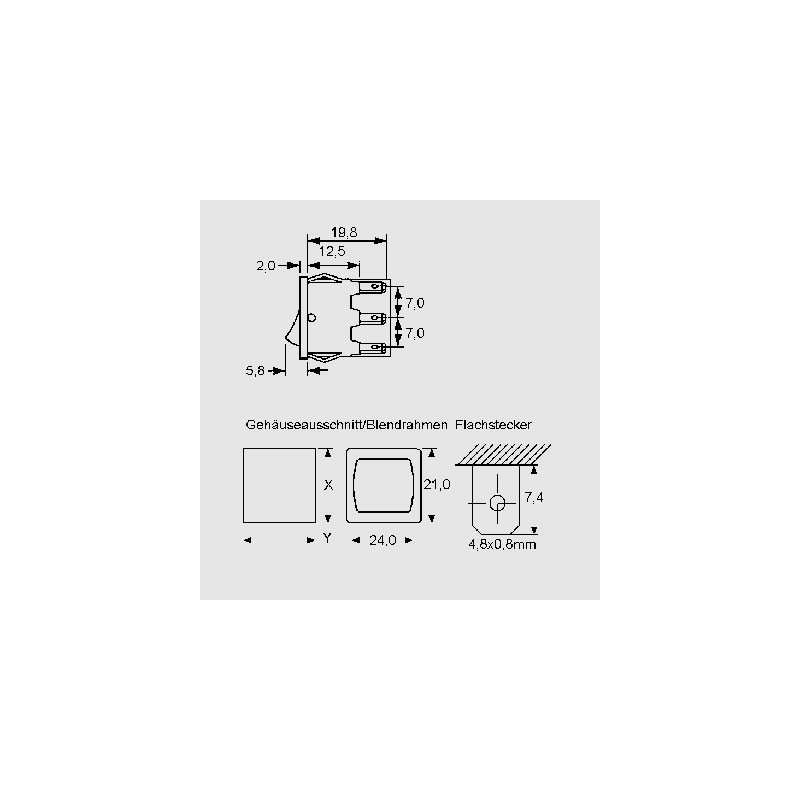

for 22x19mm panel cutouts

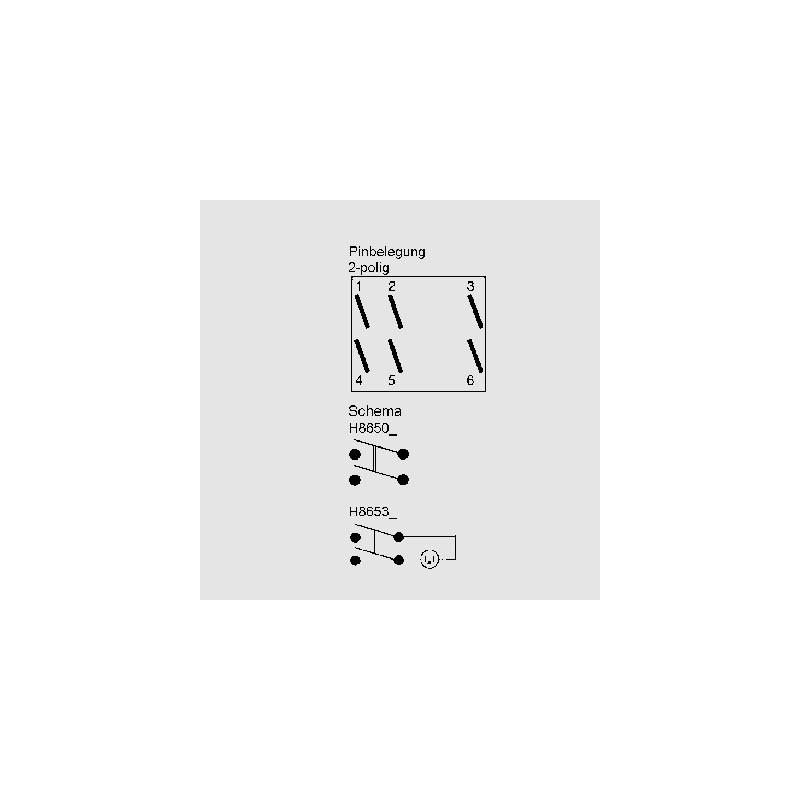

• 2-pole version
• with connector 4.8x0.8mm
• operating voltage, max.: 250V AC
• switching current, max.: 10A
• switching current at inductive load, max.: 4A
• inrush current (EN61058-1): 25A
• insulation resistance: >20MΩ
• contact resistance (New State, 12V DC/1A): <100mΩ
• contact opening width: <3mm
• soldering conditions (hand soldering): 350°C/6s
• materials
shell and rocker: nylon 6.6
illuminated rocker: polycarbonate
• current-carrying part: Cu alloy
• contacts: silver-plated
• flammability class: UL94V2

suitable protective caps: WNX 16
WNX 13

WNX 13

13364 WNX 13 H8653VBNBP H8653VBNBP for 22x19mm panel cutouts. * 2-pole version* with connector 4.8x0.8mm* operating voltage, max.: 250V AC* switching current, max.: 10A* switching current at inductive load, max.: 4A* inrush current (EN61058-1): 25A* insulation resistance: &gt;20MΩ* contact resistance (New State, 12V DC/1A): &lt;100mΩ* contact opening width: &lt;3mm* soldering conditions (hand soldering): 350°C/6s* materialsshell and rocker: nylon 6.6illuminated rocker: polycarbonate* current-carrying part: Cu alloy* contacts: silver-plated* flammability class: UL94V2suitable protective caps: WNX 16

Specifications

manufacturer
Manufacturer's name H8653VBNBP
Switch positions 2x ON-OFF
Case colour black
Rocker green
Illuminated yes
Rocker imprint I/O
Switching current [A] 10
Panel cut-out [mm] 22 x 19
Data Sheet

Unit price

3,69 €

Stock: 702
Next incoming goods:
CW 27/2025
300 units

Further delivery:
CW 38/2025

Minimum order quantity 1 to 2 units or multiples of 10 plus 0 to 2 .
