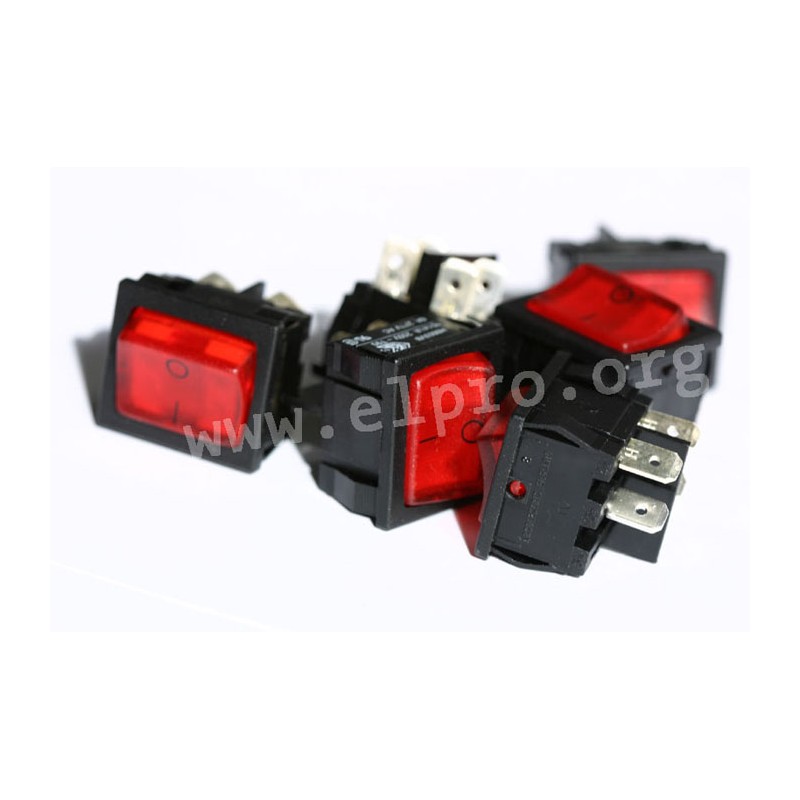

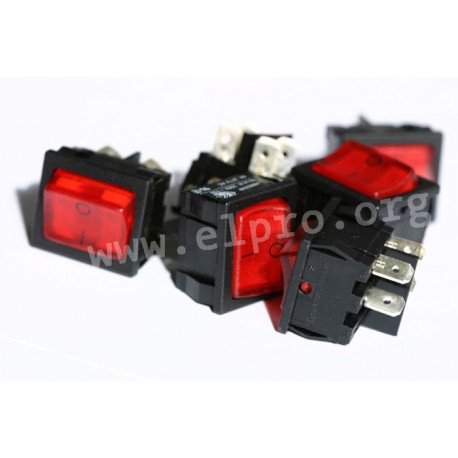

WNX 12

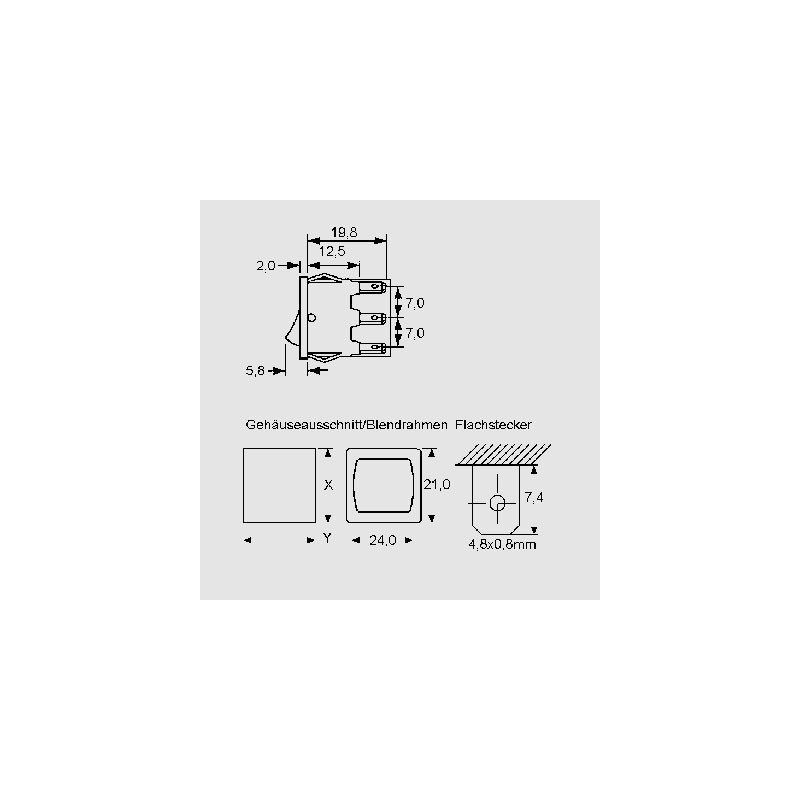

for 22x19mm panel cutouts

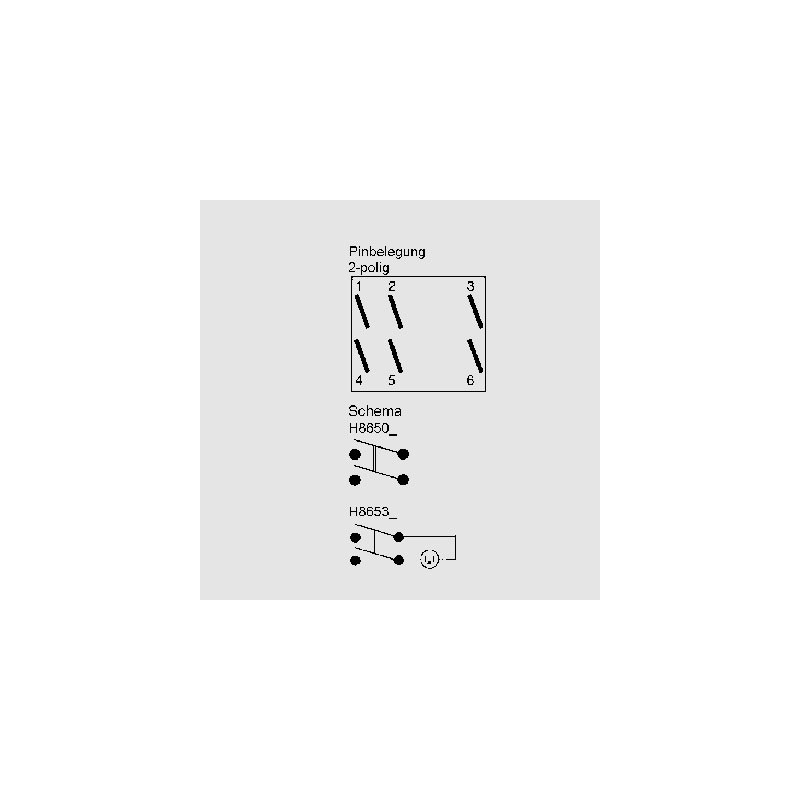

* 2-pole version
* with connector 4.8x0.8mm
* operating voltage, max.: 250V AC
* switching current, max.: 10A
* switching current at inductive load, max.: 4A
* inrush current (EN61058-1): 25A
* insulation resistance: >20MΩ
* contact resistance (New State, 12V DC/1A): <100mΩ
* contact opening width: <3mm
* soldering conditions (hand soldering): 350°C/6s
* materials
shell and rocker: nylon 6.6
illuminated rocker: polycarbonate
* current-carrying part: Cu alloy
* contacts: silver-plated
* flammability class: UL94V2

suitable protective caps: WNX 16
WNX 12

WNX 12

13363 WNX 12 H8653VBNBM H8653VBNBM for 22x19mm panel cutouts. * 2-pole version* with connector 4.8x0.8mm* operating voltage, max.: 250V AC* switching current, max.: 10A* switching current at inductive load, max.: 4A* inrush current (EN61058-1): 25A* insulation resistance: &gt;20MΩ* contact resistance (New State, 12V DC/1A): &lt;100mΩ* contact opening width: &lt;3mm* soldering conditions (hand soldering): 350°C/6s* materialsshell and rocker: nylon 6.6illuminated rocker: polycarbonate* current-carrying part: Cu alloy* contacts: silver-plated* flammability class: UL94V2suitable protective caps: WNX 16

Specifications

manufacturer
Manufacturer's name H8653VBNBM
Switch positions 2x ON-OFF
Case colour black
Rocker red
Illuminated yes
Rocker imprint I/O
Switching current [A] 10
Panel cut-out [mm] 22 x 19
Data Sheet

Unit price

4,09 €

Stock: 131
Next incoming goods:
CW 04/2025
40 units

Further delivery:
CW 09/2025

Minimum order quantity 1 unit or multiples of 10 plus 0 to 1 .
