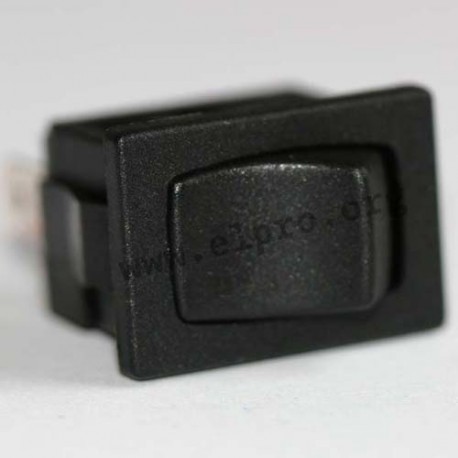

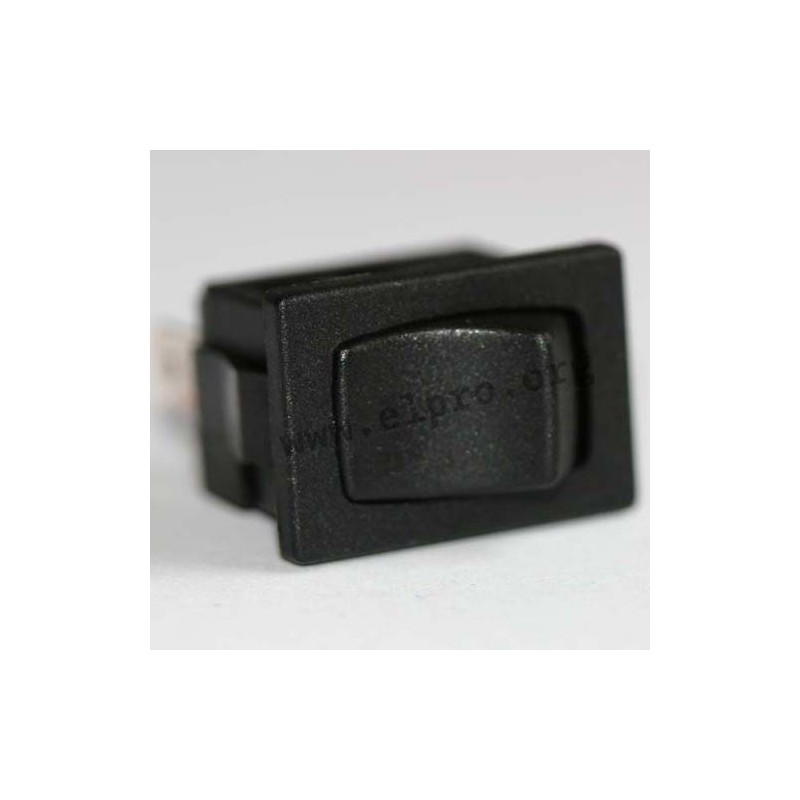

WNX 14

for 13x19mm panel cutout

* with connector 4.8x0.8mm
* operating voltage, max.: 250V AC
* switching current, max.: 10A
* switching current at inductive load, max.: 4A
* insulation resistance: >20MΩ
* contact resistance (New State, 12V DC/1A): <100mΩ
* contact opening width: 3mm
* soldering conditions (hand solder): 350°C/6s
* materials
shell and rocker: nylon 6.6
current-carrying part: Cu alloy
* contacts: silver-plated
* flamability class: UL94V2

suitable protective caps: WNX 15
WNX 14

WNX 14

13365 WNX 14 H8620VBAAA H8620VBAAA for 13x19mm panel cutout. * with connector 4.8x0.8mm* operating voltage, max.: 250V AC* switching current, max.: 10A* switching current at inductive load, max.: 4A* insulation resistance: &gt;20MΩ* contact resistance (New State, 12V DC/1A): &lt;100mΩ* contact opening width: 3mm* soldering conditions (hand solder): 350°C/6s* materialsshell and rocker: nylon 6.6current-carrying part: Cu alloy* contacts: silver-plated* flamability class: UL94V2suitable protective caps: WNX 15

Specifications

manufacturer
Manufacturer's name H8620VBAAA

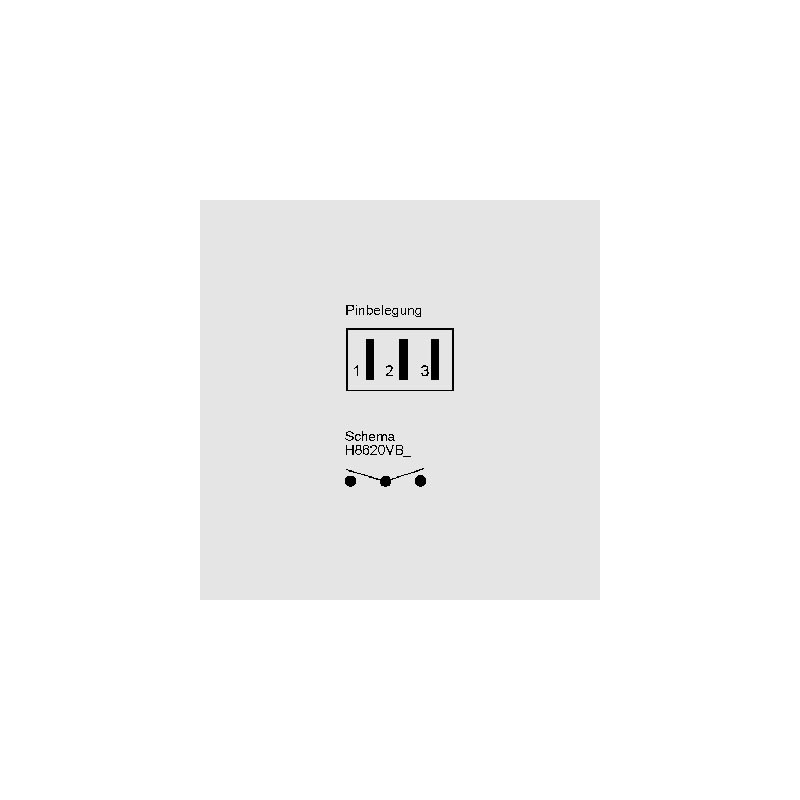

Switch positions ON - OFF - ON
Case colour black
Rocker black
Switching current [A] 10
Panel cut-out [mm] 13 x 19
Data Sheet

Unit price

2,19 €

Stock: 406
Further delivery:
CW 24/2025

Minimum order quantity 1 to 6 units or multiples of 10 plus 0 to 6 .
