WNX 9

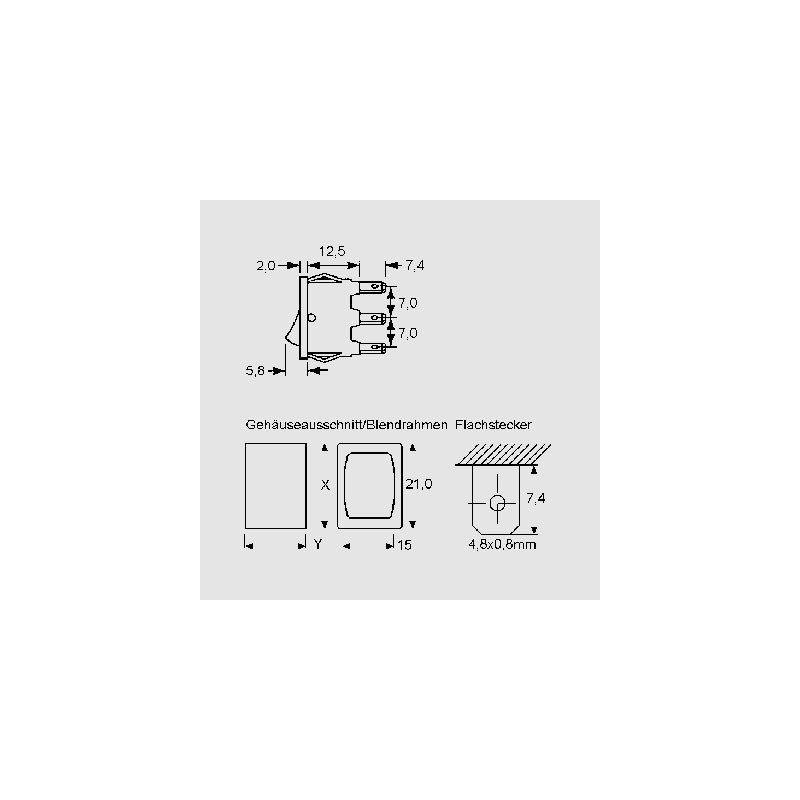

for 13x19mm housing cutout

• 1-pole version
• with connector 4,8x0,8mm
• operating voltage, max.: 250V AC
• switching current, max.: 6A
• switching current at inductive load, max. 1A
• inrush current (EN61058-1): 25A
• insulation resistance: >20MΩ
• contact resistance
(New State, 12V DC/1A): <100mΩ
contact opening width: <3mm
• soldering conditions (hand solder): 350°C/6s
• materials
shell and rocker: nylon 6.6
current-carrying part: Cu alloy
• contacts: silver-plated
• flammability class: UL94V2

suitable protecting caps: WNX 15

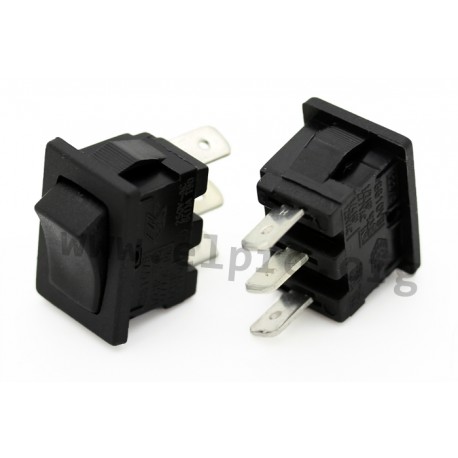

H8610VBAAA, Arcolectric rocker switches, 6 resp 10A, for 13x19mm panel cut-out, 8600 series

WNX 9

13408 WNX 9 H8610VBAAA H8610VBAAA for 13x19mm housing cutout. • 1-pole version• with connector 4,8x0,8mm• operating voltage, max.: 250V AC• switching current, max.: 6A• switching current at inductive load, max. 1A• inrush current (EN61058-1): 25A• insulation resistance: &gt;20MΩ• contact resistance(New State, 12V DC/1A): &lt;100mΩcontact opening width: &lt;3mm• soldering conditions (hand solder): 350°C/6s• materialsshell and rocker: nylon 6.6current-carrying part: Cu alloy• contacts: silver-plated• flammability class: UL94V2suitable protecting caps: WNX 15

Specifications

manufacturer
Manufacturer's name H8610VBAAA

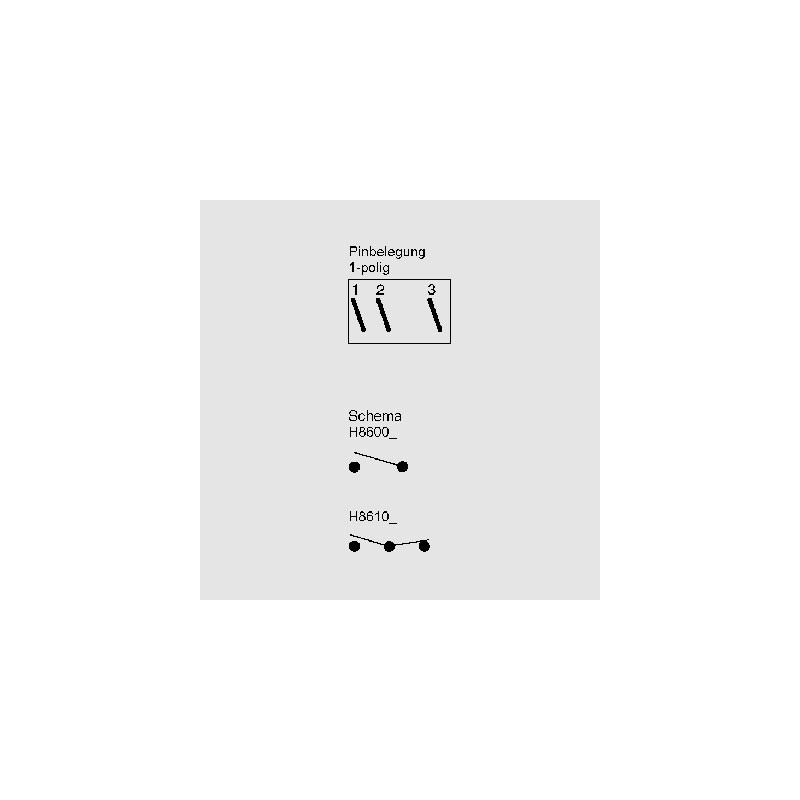

Switch positions ON - ON
Case colour black
Rocker black
Rocker imprint -
Switching current [A] 6
Panel cut-out [mm] 13 x 19
Data Sheet

Unit price

1,98 €

Stock: 199
Further delivery:
CW 09/2025

Minimum order quantity 1 to 9 units or multiples of 10 plus 0 to 9 .
