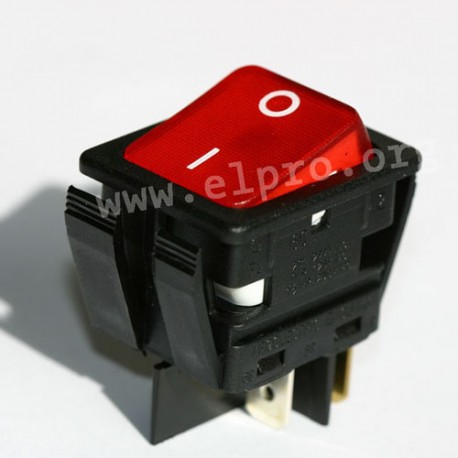

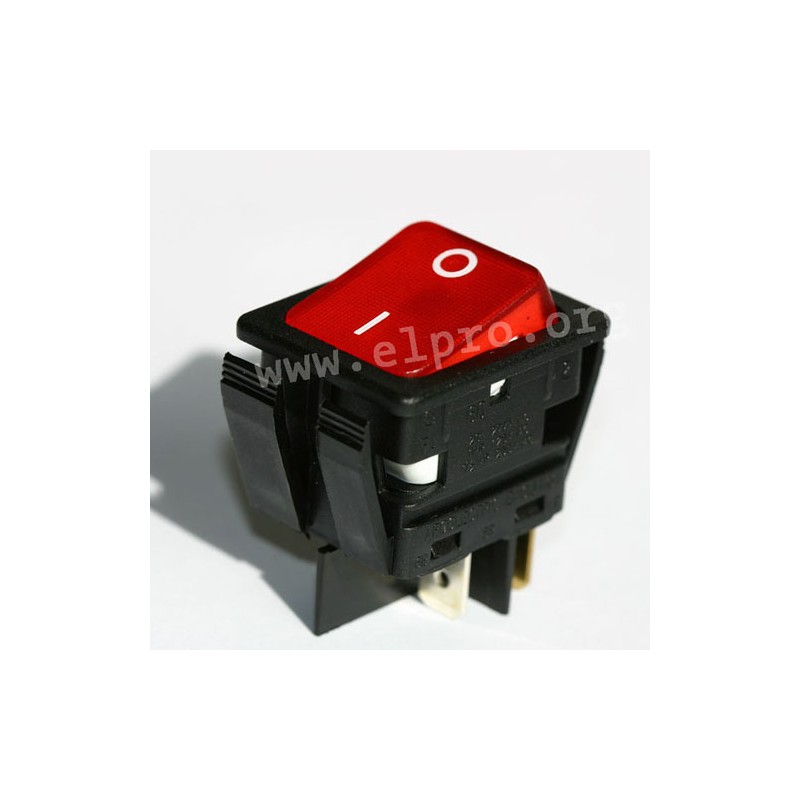

WNX 21

for 22x30mm panel cutouts

* 2-pole version
* with connector 6.3x0.8mm
* operating voltage, max.: 250V AC
* switching current, max.: 16A
* switching current at inductive load, max.: 4A
* inrush current (EN61058-1): 150A
* insulation resistance: >20MΩ
* contact resistance (New State, 12V DC/1A): <100mΩ
* contact opening width: 3mm
* soldering conditions (hand solder): 350°C/6s
* materials
shell and rocker: nylon 6.6
illuminated rocker: polycarbonate
current-carrying part: Cu alloy
contacts: silver-plated
* flammabililty class: UL94V2
WNX 21

WNX 21

13372 WNX 21 C6053ALNAE C6053ALNAE for 22x30mm panel cutouts. * 2-pole version* with connector 6.3x0.8mm* operating voltage, max.: 250V AC* switching current, max.: 16A* switching current at inductive load, max.: 4A* inrush current (EN61058-1): 150A* insulation resistance: &gt;20MΩ* contact resistance (New State, 12V DC/1A): &lt;100mΩ* contact opening width: 3mm* soldering conditions (hand solder): 350°C/6s* materialsshell and rocker: nylon 6.6illuminated rocker: polycarbonatecurrent-carrying part: Cu alloycontacts: silver-plated* flammabililty class: UL94V2

Specifications

manufacturer
Manufacturer's name C6053ALNAE

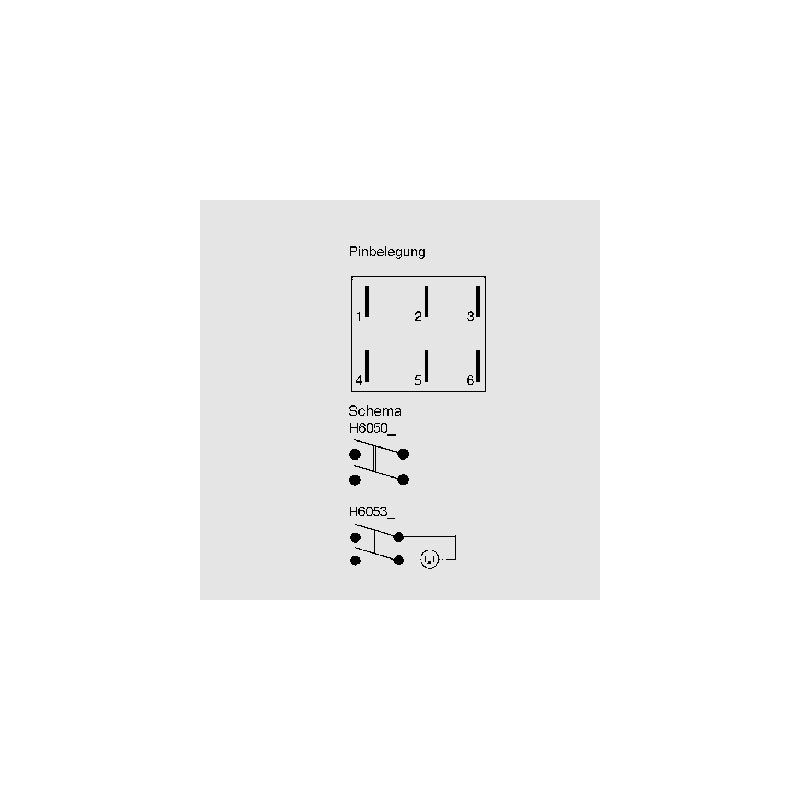

Switch positions 2x ON-OFF
Case colour black
Rocker red
Illuminated yes
Rocker imprint I/O
Panel cut-out [mm] 22 x 30
Data Sheet

Unit price

4,19 €

Stock: 1370
Next incoming goods:
CW 14/2025
30 units

Further delivery:
CW 14/2025

Minimum order quantity 10 units or
multiples of 10.
