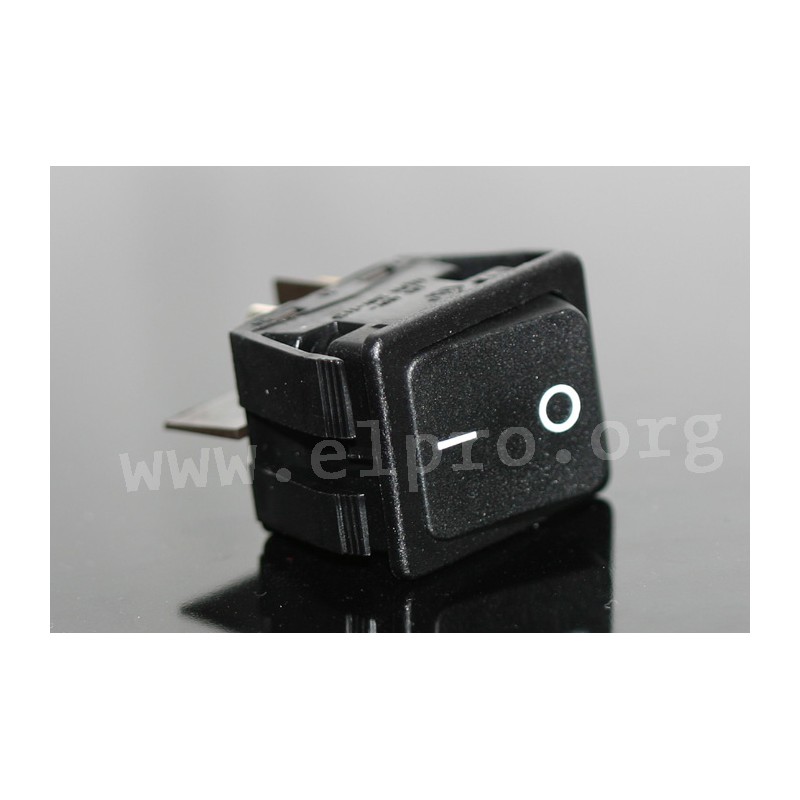

WNX 20

for 22x30mm panel cutouts

• 2-pole version
• with connector 6.3x0.8mm
• operating voltage, max.: 250V AC
• switching current, max.: 16A
• switching current at inductive load, max.: 4A
• inrush current (EN61058-1): 150A
• insulation resistance: >20MΩ
• contact resistance (New State, 12V DC/1A): <100mΩ
• contact opening width: 3mm
• soldering conditions (hand solder): 350°C/6s
• materials
shell and rocker: nylon 6.6
illuminated rocker: polycarbonate
current-carrying part: Cu alloy
contacts: silver-plated
• flammabililty class: UL94V2
WNX 20

WNX 20

13371 WNX 20 C6050ALAAC C6050ALAAC for 22x30mm panel cutouts. * 2-pole version* with connector 6.3x0.8mm* operating voltage, max.: 250V AC* switching current, max.: 16A* switching current at inductive load, max.: 4A* inrush current (EN61058-1): 150A* insulation resistance: &gt;20MΩ* contact resistance (New State, 12V DC/1A): &lt;100mΩ* contact opening width: 3mm* soldering conditions (hand solder): 350°C/6s* materialsshell and rocker: nylon 6.6illuminated rocker: polycarbonatecurrent-carrying part: Cu alloycontacts: silver-plated* flammabililty class: UL94V2

Specifications

manufacturer
Manufacturer's name C6050ALAAC

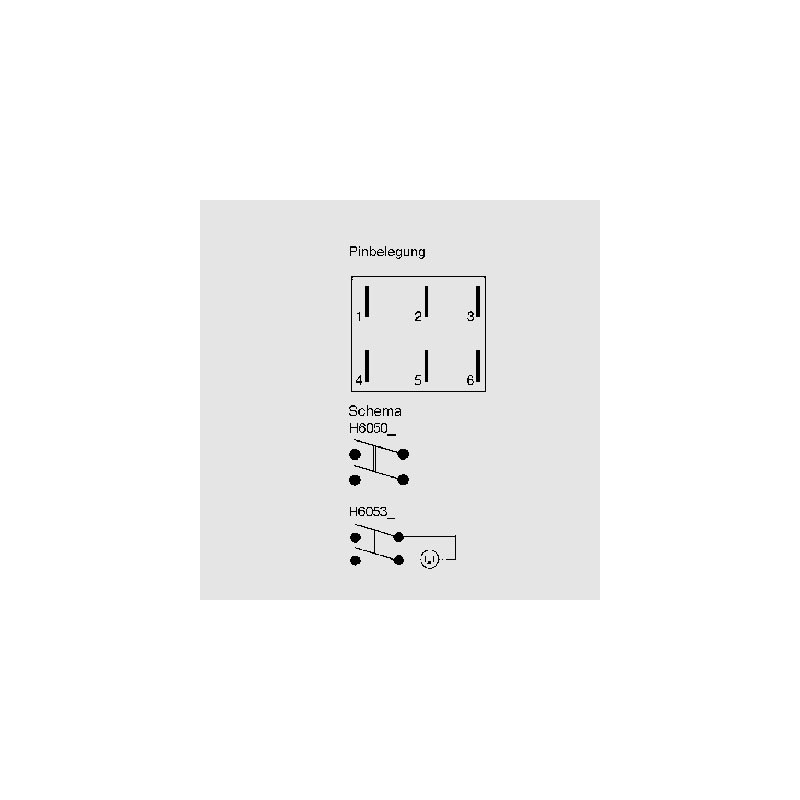

Switch positions 2x ON-OFF
Case colour black
Rocker black
Illuminated no
Rocker imprint I/O
Panel cut-out [mm] 22 x 30
Data Sheet

Unit price

3,29 €

Stock: 455
Further delivery:
CW 34/2025

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
