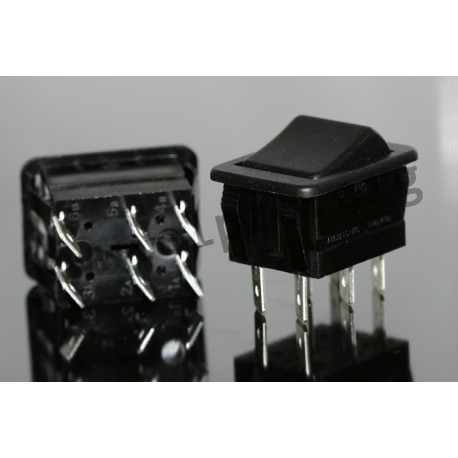

WNX 29

for 22x30mm panel cutouts

* by Arcolectric
* 2-pole version
* with connector 6.3x0.8mm
* max. 250V AC operating voltage
* max. 16A switching current
* at inductive load max. 4A switching current
* 36A inrush current (EN61058-1)
* insulation resistance: >20MΩ
* contact resistance (new state, 12V DC/1A): <100mΩ
* contact opening width of WNX29: <3mm
* contact opening width of WNX28, WNX30 and C1553_: 3mm
* soldering conditions (hand solder): 350°C/6s
* material of shell and rocker: nylon 6.6
* material of illuminated rocker: polycarbonate
* material of current-carrying part: Cu alloy
* silver-plated contacts
* flammability class: UL94V2

WNX 29

WNX 29

13380 WNX 29 C1560ABAAA C1560ABAAA for 22x30mm panel cutouts. * by Arcolectric* 2-pole version* with connector 6.3x0.8mm* max. 250V AC operating voltage* max. 16A switching current* at inductive load max. 4A switching current * 36A inrush current (EN61058-1)* insulation resistance: &gt;20MΩ* contact resistance (new state, 12V DC/1A): &lt;100mΩ* contact opening width of WNX29: &lt;3mm* contact opening width of WNX28, WNX30 and C1553_: 3mm* soldering conditions (hand solder): 350°C/6s* material of shell and rocker: nylon 6.6* material of illuminated rocker: polycarbonate* material of current-carrying part: Cu alloy* silver-plated contacts* flammability class: UL94V2

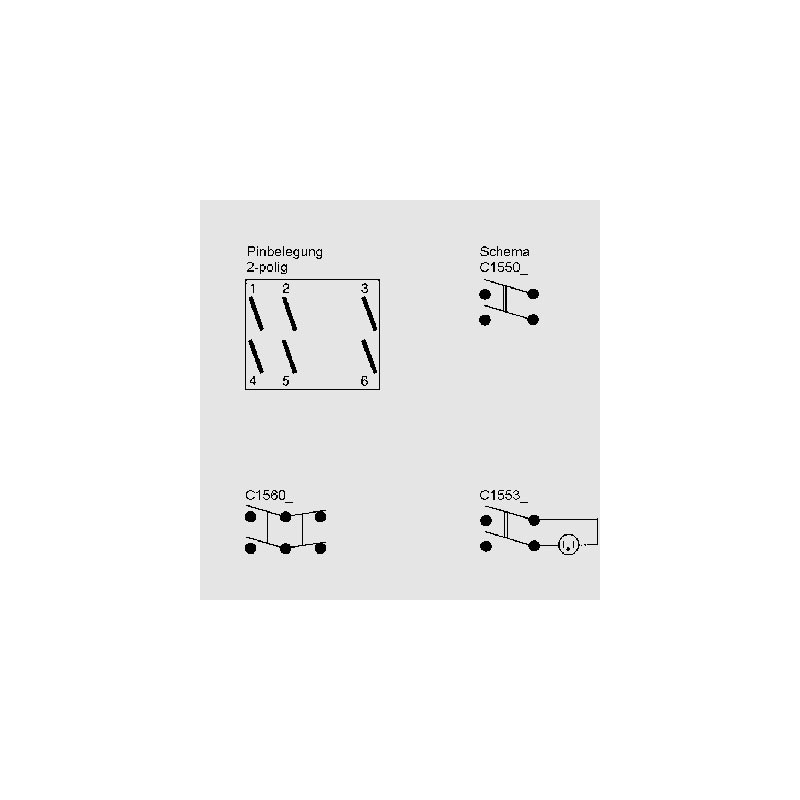

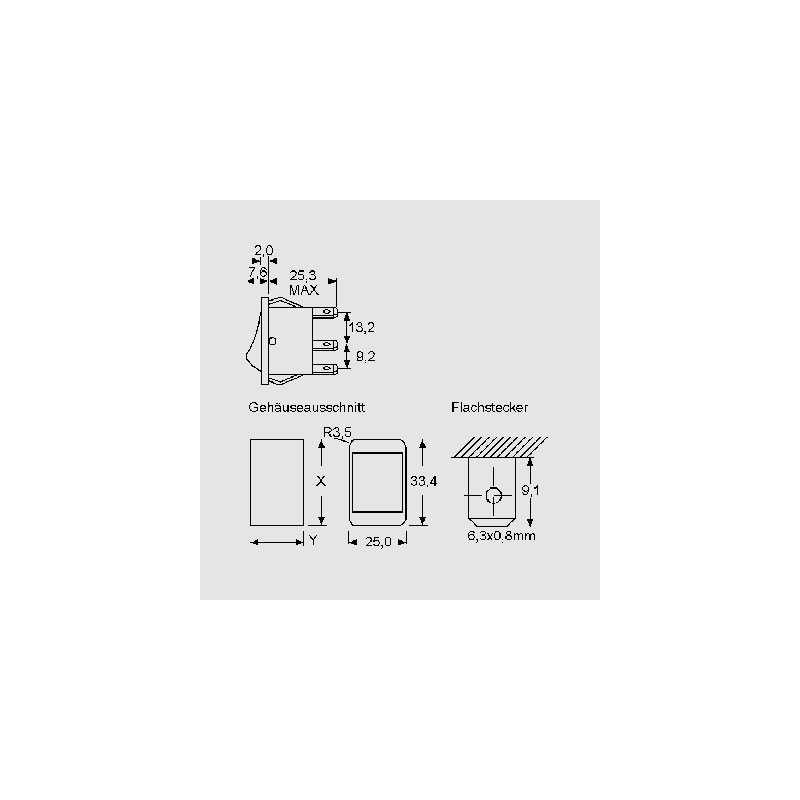

Specifications

manufacturer
Manufacturer's name C1560ABAAA
Switch positions 2x ON-ON
Case colour black
Rocker black
Illuminated no
Rocker imprint -
Panel cut-out [mm] 22 x 30
Data Sheet

Unit price

1,38 €

Stock: 530
Further delivery:
CW 09/2025

Minimum order quantity 10 units or
multiples of 10.
