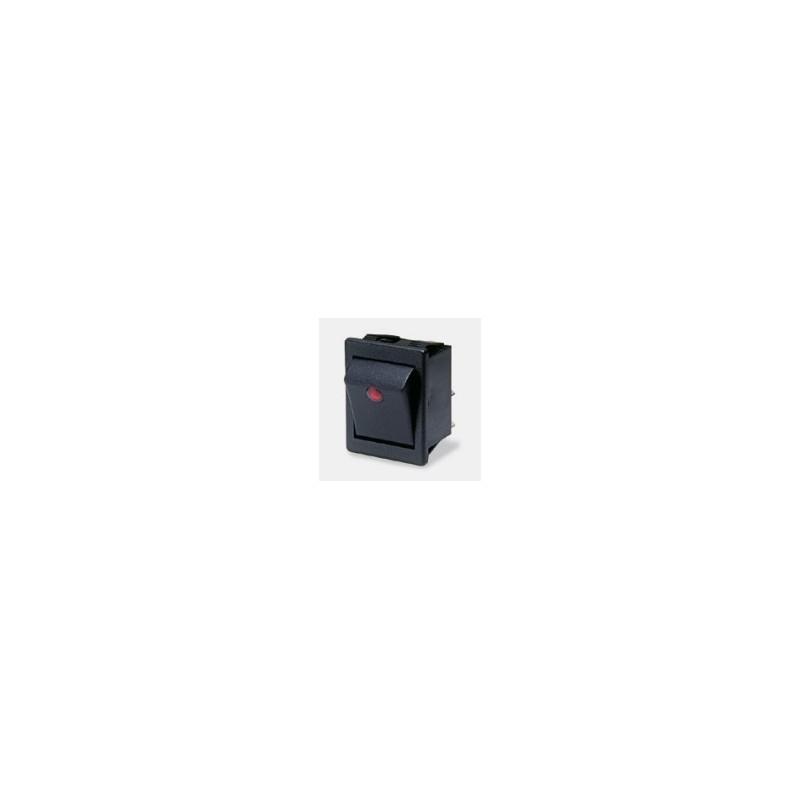

C1553PTNAB

for 22x30mm panel cutouts

• by Arcolectric
• 2-pole version
• with connector 6.3x0.8mm
• max. 250V AC operating voltage
• max. 16A switching current
• at inductive load max. 4A switching current
• 36A inrush current (EN61058-1)
• insulation resistance: >20MΩ
• contact resistance (new state, 12V DC/1A): <100mΩ
• contact opening width of WNX29: <3mm
• contact opening width of WNX28, WNX30 and C1553_: 3mm
• soldering conditions (hand solder): 350°C/6s
• material of shell and rocker: nylon 6.6
• material of illuminated rocker: polycarbonate
• material of current-carrying part: Cu alloy
• silver-plated contacts
• flammability class: UL94V2

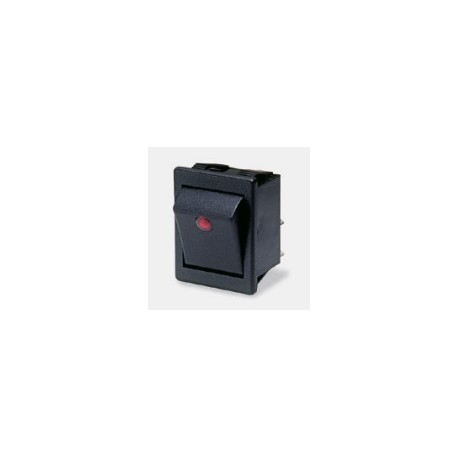

C1553PTNAB

C1553PTNAB

107676 C1553PTNAB C1553PTNAB for 22x30mm panel cutouts. • by Arcolectric• 2-pole version• with connector 6.3x0.8mm• max. 250V AC operating voltage• max. 16A switching current• at inductive load max. 4A switching current • 36A inrush current (EN61058-1)• insulation resistance: &gt;20MΩ• contact resistance (new state, 12V DC/1A): &lt;100mΩ• contact opening width of WNX29: &lt;3mm• contact opening width of WNX28, WNX30 and C1553_: 3mm• soldering conditions (hand solder): 350°C/6s• material of shell and rocker: nylon 6.6• material of illuminated rocker: polycarbonate• material of current-carrying part: Cu alloy• silver-plated contacts• flammability class: UL94V2

Specifications

manufacturer
Manufacturer's name C1553PTNAB

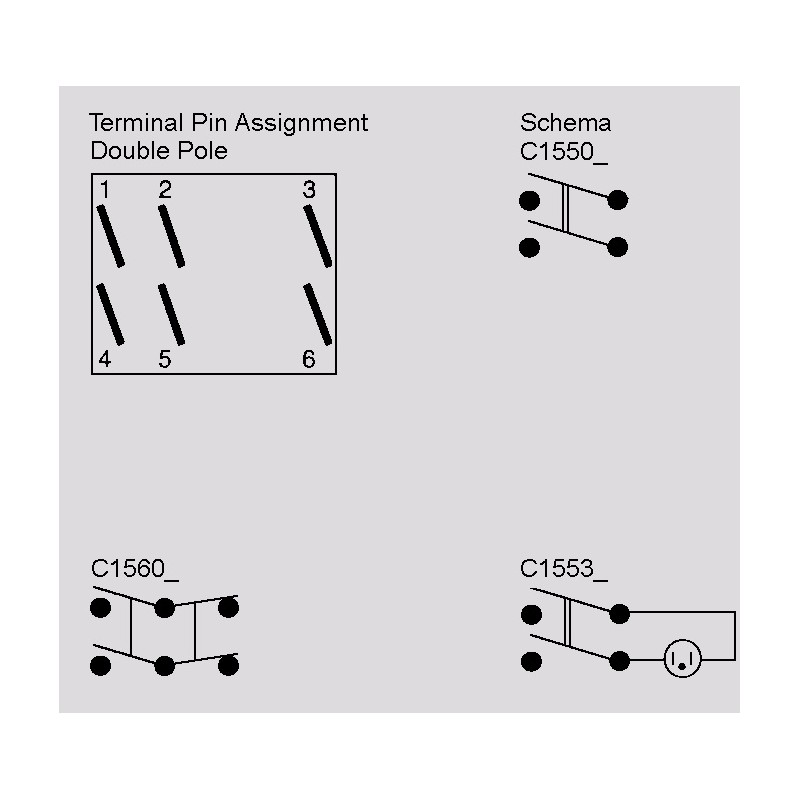

Switch positions 2x ON-OFF
Case colour black
Rocker black, red LED

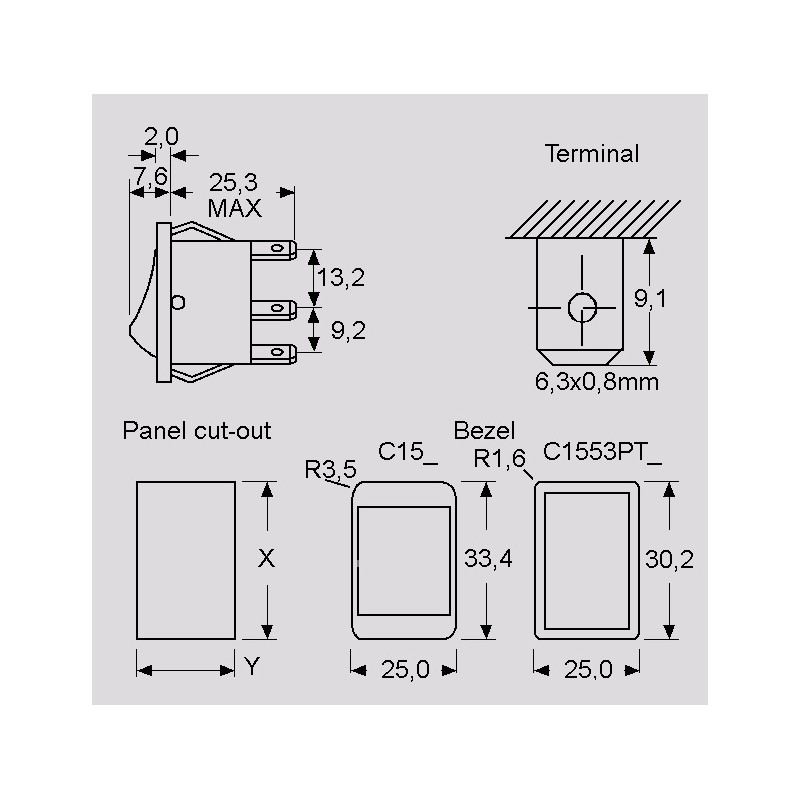

Panel cut-out [mm] 22 x 30
Data Sheet

Unit price

5,09 €

Stock: 300
Further delivery:
CW 15/2025

Minimum order quantity 10 units or
multiples of 10.
