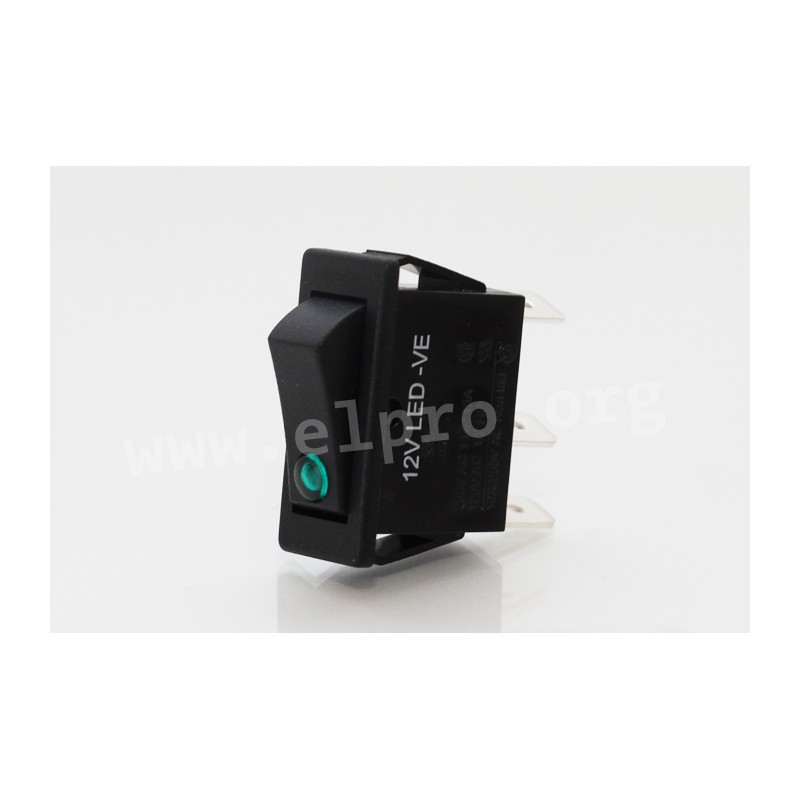

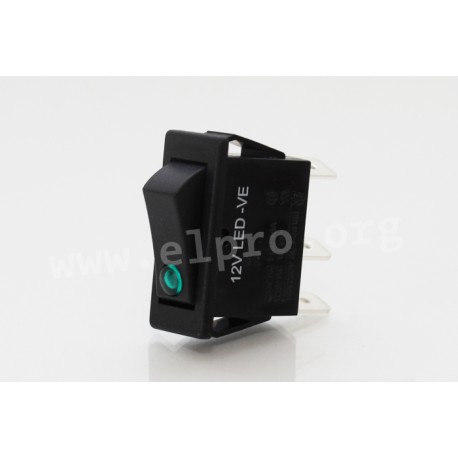

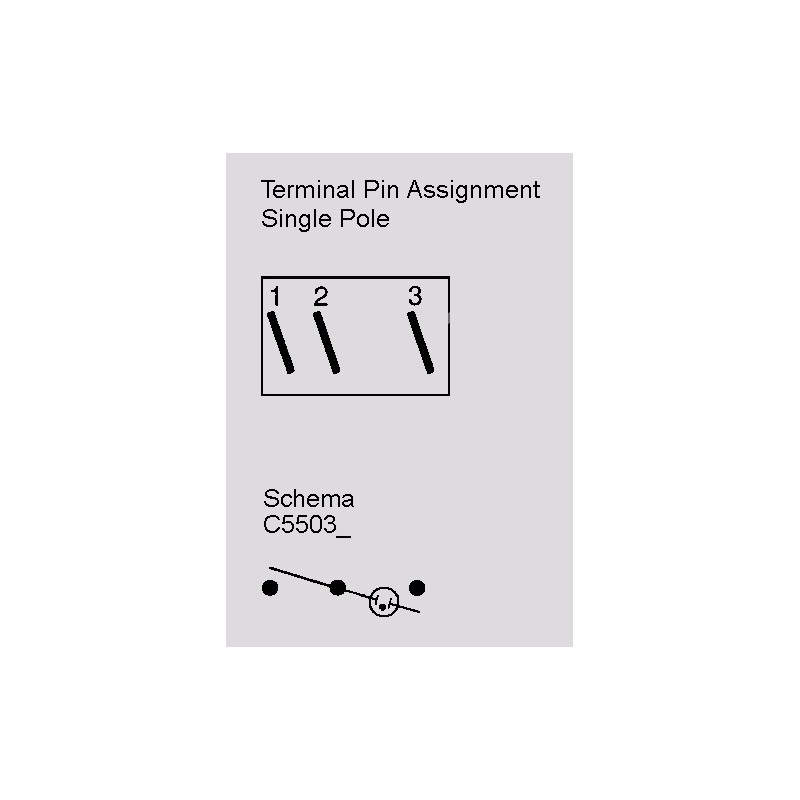

C5503PLLAB

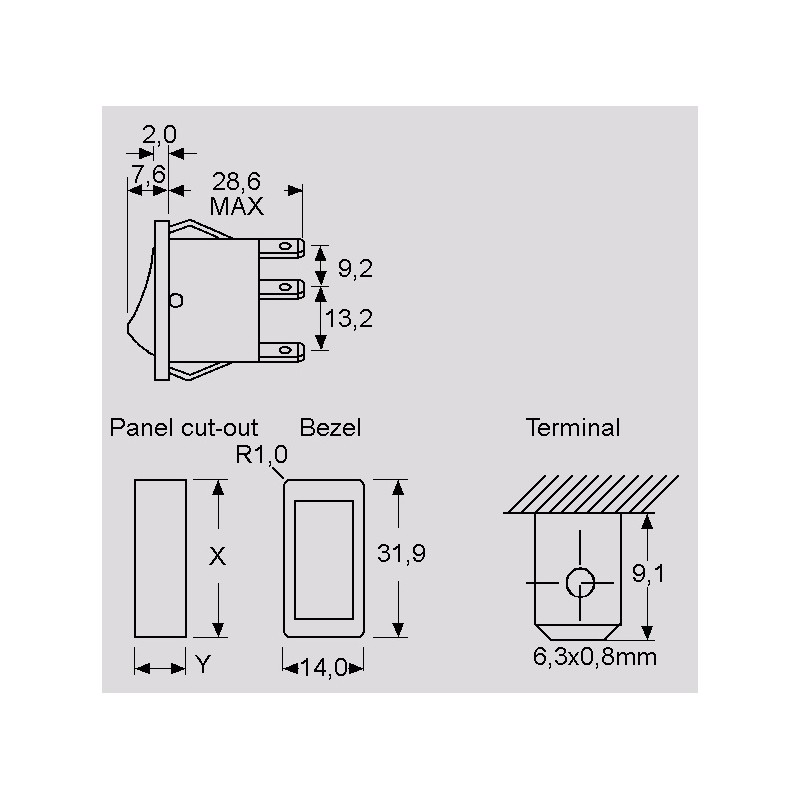

for 11x30mm panel cutouts

• 1-pole version
• with connector 6.3x0.8mm
• max. 250V AC operating voltage
• max. 16A switching current
• at inductive load max. 4A switching current
• 36A inrush current (EN61058-1)
• insulation resistance: >20MΩ
• contact resistance (new state, 12V DC/1A): <100mΩ
• 3mm contact opening width
* WNX25: max. 85°C ambient temperature
* WNX26, 27 and C5503_: max 125°C ambient temperature
• soldering conditions (hand solder): 350°C/6s
• material of shell and rocker: nylon 6.6
* material of illuminated rocker: polycarbonate
• material of current-carrying part: Cu alloy
• silver-plated contacts
​* flammability class: UL94V2

• 1-pole version
• with connector 6.3x0.8mm
• max. 250V AC operating voltage
• max. 16A switching current
• at inductive load max. 4A switching current
• 36A inrush current (EN61058-1)
• insulation resistance: >20MΩ
• contact resistance (new state, 12V DC/1A): <100mΩ
• 3mm contact opening width
• WNX25: max. 85°C ambient temperature
• WNX 26, 27 and C5503_: max 125°C ambient temperature
• soldering conditions (hand solder): 350°C/6s
• materials of shell and rocker: nylon 6.6
• material of illuminated rocker: polycarbonate
• material of current-carrying part: Cu alloy
• silver-plated contacts
• flammability class: UL94V2

C5503PLLAB

C5503PLLAB

107675 C5503PLLAB C5503PLLAB for 11x30mm panel cutouts. • 1-pole version• with connector 6.3x0.8mm• max. 250V AC operating voltage• max. 16A switching current• at inductive load max. 4A switching current• 36A inrush current (EN61058-1)• insulation resistance: &gt;20MΩ• contact resistance (new state, 12V DC/1A): &lt;100mΩ• 3mm contact opening width* WNX25: max. 85°C ambient temperature* WNX26, 27 and C5503_: max 125°C ambient temperature• soldering conditions (hand solder): 350°C/6s• material of shell and rocker: nylon 6.6* material of illuminated rocker: polycarbonate• material of current-carrying part: Cu alloy• silver-plated contacts​* flammability class: UL94V2 • 1-pole version• with connector 6.3x0.8mm• max. 250V AC operating voltage• max. 16A switching current• at inductive load max. 4A switching current• 36A inrush current (EN61058-1)• insulation resistance: &gt;20MΩ• contact resistance (new state, 12V DC/1A): &lt;100mΩ• 3mm contact opening width• WNX25: max. 85°C ambient temperature• WNX 26, 27 and C5503_: max 125°C ambient temperature• soldering conditions (hand solder): 350°C/6s• materials of shell and rocker: nylon 6.6• material of illuminated rocker: polycarbonate• material of current-carrying part: Cu alloy• silver-plated contacts• flammability class: UL94V2

Specifications

manufacturer
Manufacturer's name C5503PLLAB
Switch positions ON - OFF
Case colour black
Rocker black, LED green
Panel cut-out [mm] 11 x 30
Data Sheet

Unit price

3,79 €

Stock: 735
Further delivery:
CW 09/2025

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
