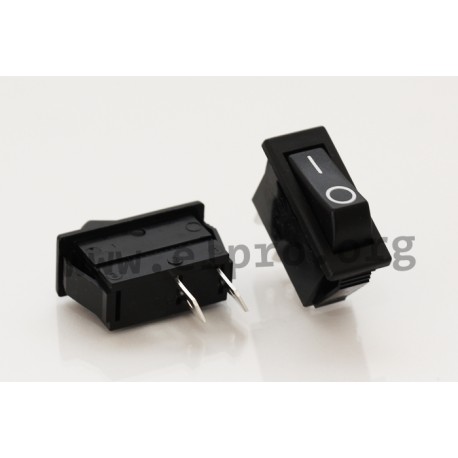

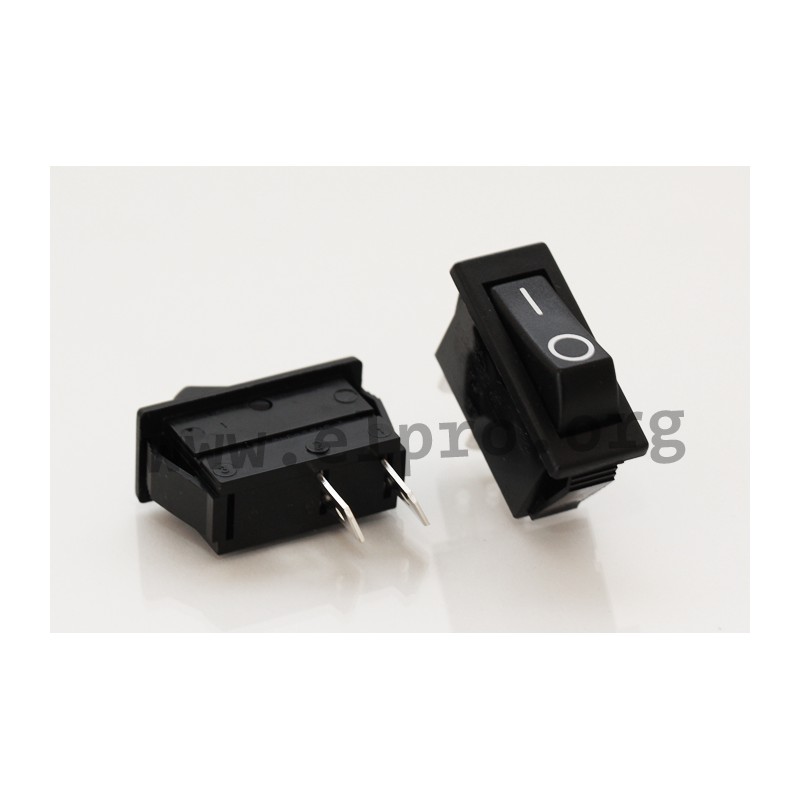

C1300ALAAA

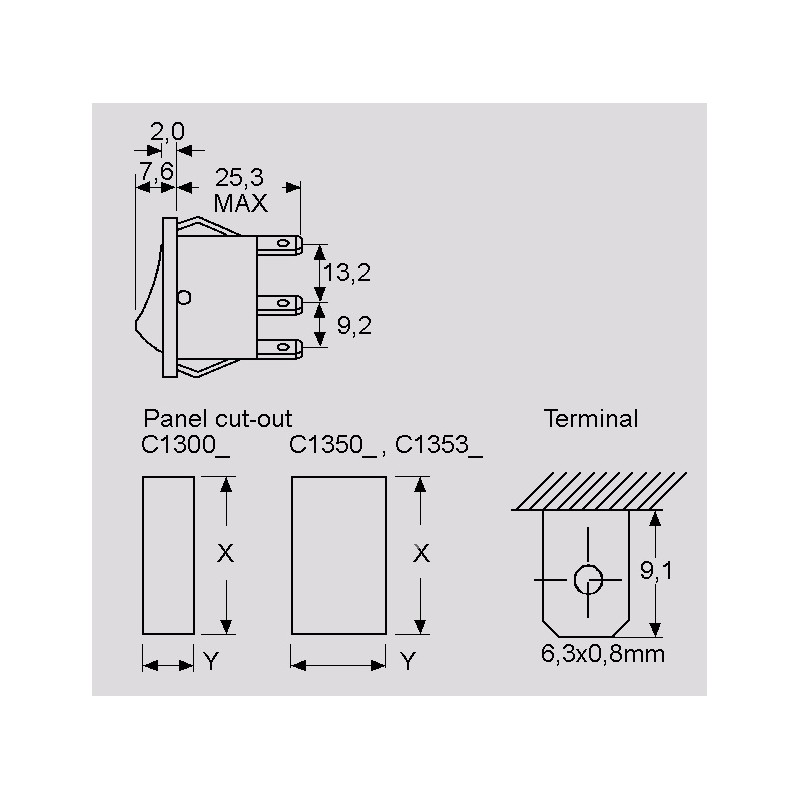

rocker switches for 11x30mm panel cutout

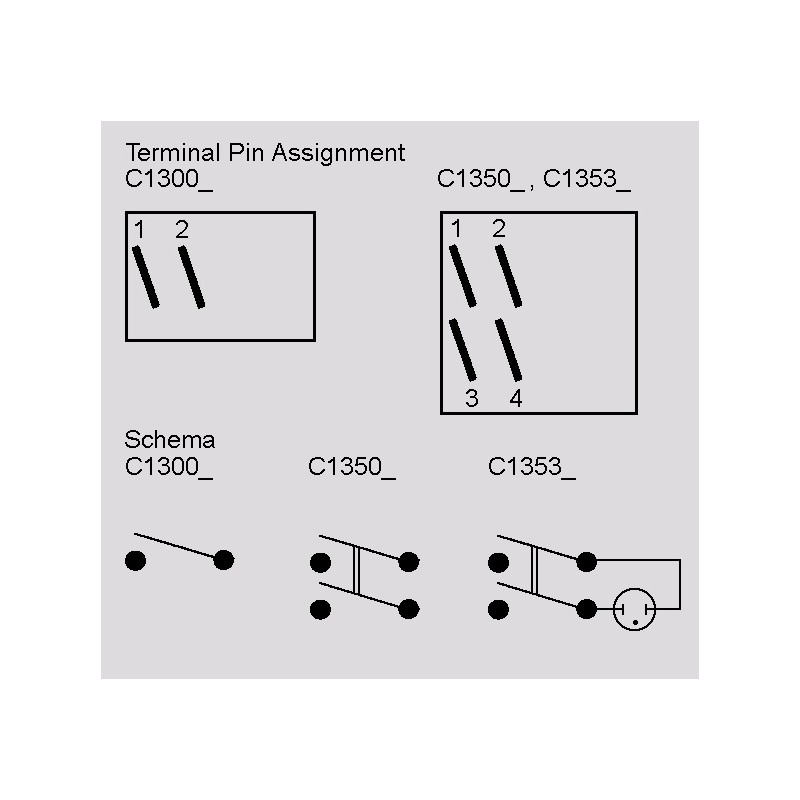

• 1- and 2-pole versions
• with connector 6.3x0.8mm
• max. 250V AC operating voltage
• max. 16A switching current
• max. 6A switching current at inductive load
• inrush current (EN61058-1): 150A
• max. ambient temperature: 125°C
• insulation resistance: >20MΩ
• contact resistance (new state, 12V DC/1A): <100mΩ
• contact opening width: <3mm
• soldering conditions (hand solder): 350°C/6s
• material of shell and rocker: nylon 6.6
• material of current-carrying part: Cu alloy
• silver-plated contacts
• flammability class: UL94V2

C1300ALAAA

C1300ALAAA

107664 C1300ALAAA C1300ALAAA rocker switches for 11x30mm panel cutout. • 1- and 2-pole versions• with connector 6.3x0.8mm• max. 250V AC operating voltage• max. 16A switching current• max. 6A switching current at inductive load• inrush current (EN61058-1): 150A• max. ambient temperature: 125°C• insulation resistance: &gt;20MΩ• contact resistance (new state, 12V DC/1A): &lt;100mΩ• contact opening width: &lt;3mm• soldering conditions (hand solder): 350°C/6s• material of shell and rocker: nylon 6.6• material of current-carrying part: Cu alloy• silver-plated contacts• flammability class: UL94V2

Specifications

manufacturer
Manufacturer's name C1300ALAAA
Switching current, max. [A] 16
Switch positions ON - OFF
Case colour black
Rocker black
Rocker imprint I/O
Panel cut-out [mm] 11 x 30
Data Sheet

Unit price

2,89 €

Stock: 150
Further delivery:
CW 09/2025

Minimum order quantity 10 units or
multiples of 10.
