> Passive elements>Potentiometers>Rotary potentiometers>ALPS rotary potentiometers, 6mm, RK12L series>RK12L12A0C0R

Manufacturers

RK12L12A0C0R

carbon rotary potentiometers RK12L by Alps

* series: RK12L
* mono linear (B) and positive logarithmic (A)
* rated power: 0.05W
* shaft: plastic, Ø6mm
* housing: 12mm
* operating voltage, max.: 50VAC
* insulation voltage (1 min): 300V AC
* insulation resistance: >100MW / 250 VDC
* resistance tolerance: ±20%
* rotation angle, mechanical: 300° ±5°
* operating torque: 2...15mN*m
* lifetime: 15x103 operations
* stopper strength, max.: 0.5mN*m
* temperature range: -10°C...+70°C
* by Alps

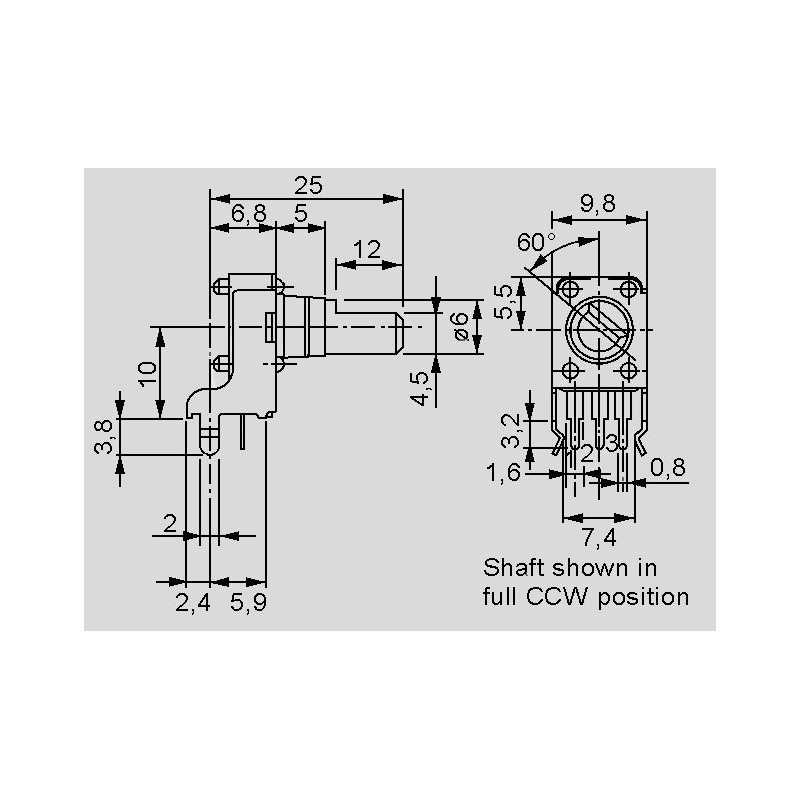

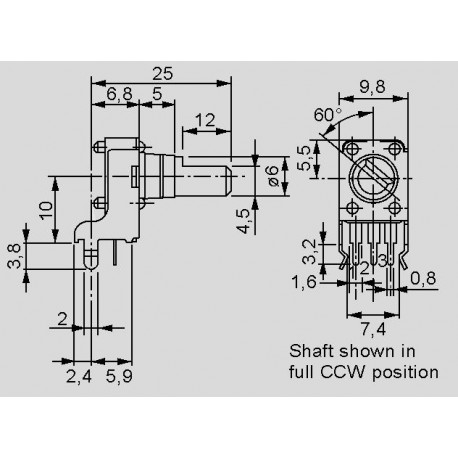

dimensions RK12L1210C0R, -12A0C0R

RK12L12A0C0R

32754 RK12L12A0C0R RK12L12A0C0R carbon rotary potentiometers RK12L by Alps. * series: RK12L* mono linear (B) and positive logarithmic (A)* rated power: 0.05W * shaft: plastic, Ø6mm * housing: 12mm* operating voltage, max.: 50VAC* insulation voltage (1 min): 300V AC* insulation resistance: >100MW / 250 VDC* resistance tolerance: ±20%* rotation angle, mechanical: 300° ±5°* operating torque: 2...15mN*m* lifetime: 15x103 operations* stopper strength, max.: 0.5mN*m* temperature range: -10°C...+70°C* by Alps

Specifications

manufacturer
Manufacturer's name RK12L12A0C0R
Design dual
Type horizontal
Center detent no
Drag curve pos. log (15A)
Resistance [kΩ] 10
Shaft length [mm] 30
Rotation angle, complete [°] 280±5
Power, max. [W] 0,05
Data Sheet

Unit price

2,59 €

Stock: 253
Further delivery:
CW 16/2025

Minimum order quantity 1 to 3 units or multiples of 10 plus 0 to 3 .
