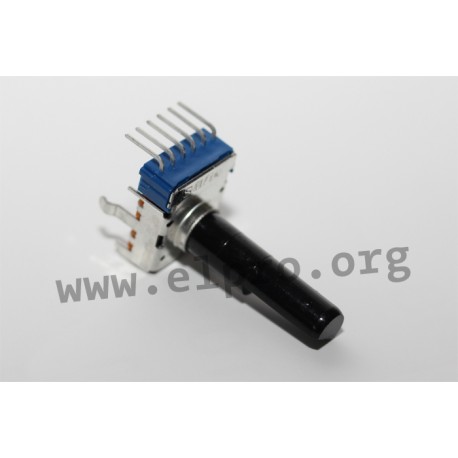

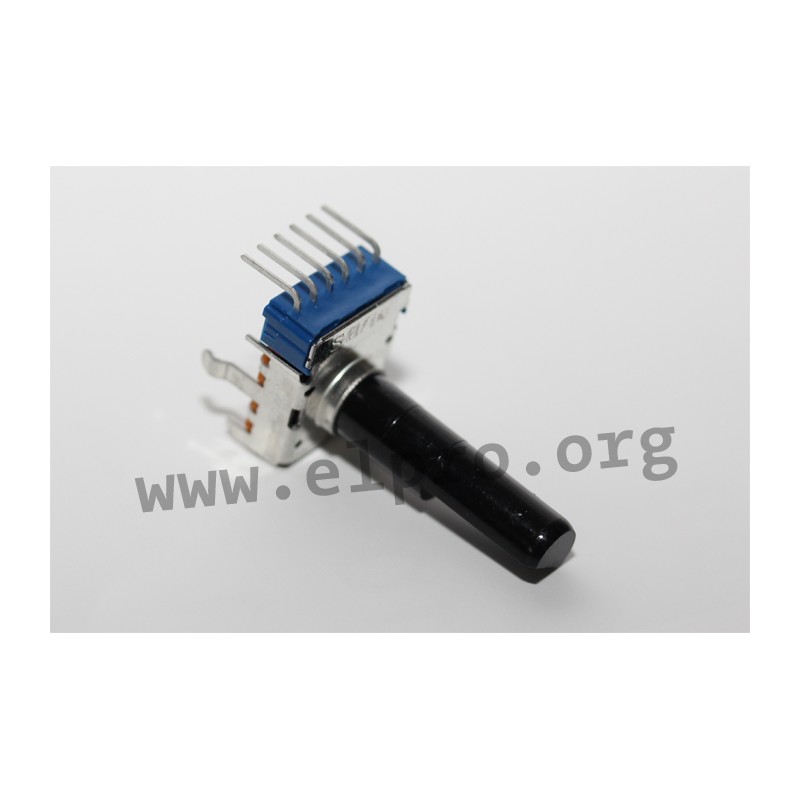

RK12L12C0A0G

carbon rotary potentiometers RK12L by Alps

* series: RK12L
* mono linear (B) and positive logarithmic (A)
* rated power: 0.05W
* shaft: plastic, Ø6mm
* housing: 12mm
* operating voltage, max.: 50VAC
* insulation voltage (1 min): 300V AC
* insulation resistance: >100MW / 250 VDC
* resistance tolerance: ±20%
* rotation angle, mechanical: 300° ±5°
* operating torque: 2...15mN*m
* lifetime: 15x103 operations
* stopper strength, max.: 0.5mN*m
* temperature range: -10°C...+70°C
* by Alps

RK12L12C0A0G

RK12L12C0A0G

32753 RK12L12C0A0G RK12L12C0A0G carbon rotary potentiometers RK12L by Alps. * series: RK12L* mono linear (B) and positive logarithmic (A)* rated power: 0.05W * shaft: plastic, Ø6mm * housing: 12mm* operating voltage, max.: 50VAC* insulation voltage (1 min): 300V AC* insulation resistance: >100MW / 250 VDC* resistance tolerance: ±20%* rotation angle, mechanical: 300° ±5°* operating torque: 2...15mN*m* lifetime: 15x103 operations* stopper strength, max.: 0.5mN*m* temperature range: -10°C...+70°C* by Alps

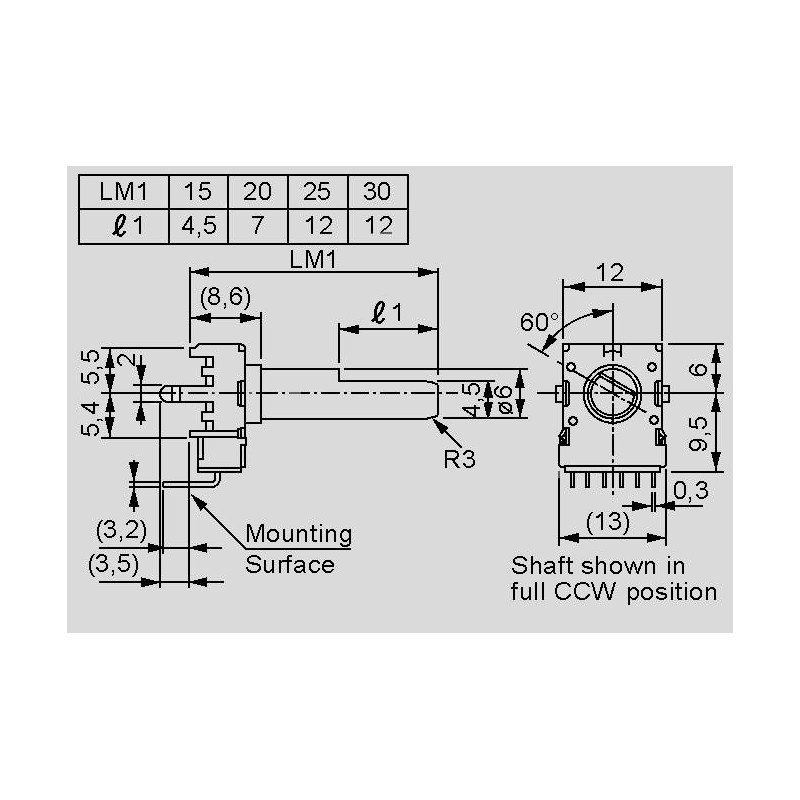

Specifications

manufacturer
Manufacturer's name RK12L12C0A0G
Design dual
Type vertical
Center detent no
Drag curve pos. log (15A)
Resistance [kΩ] 10
Shaft length [mm] 30
Rotation angle, complete [°] 300±5
Power, max. [W] 0,05
Data Sheet

Unit price

0,514 €

Stock: 990
Next incoming goods:
CW 13/2025
4000 units

Further delivery:
CW 16/2025

Minimum order quantity 10 units or
multiples of 10.
