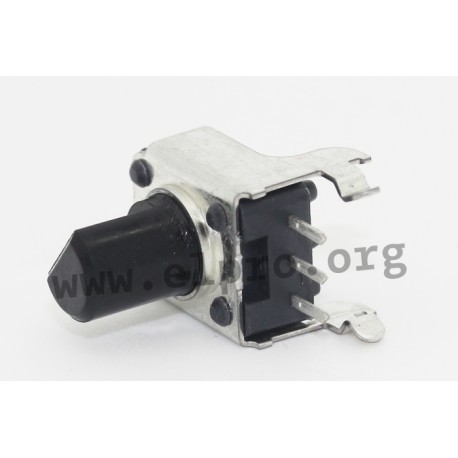

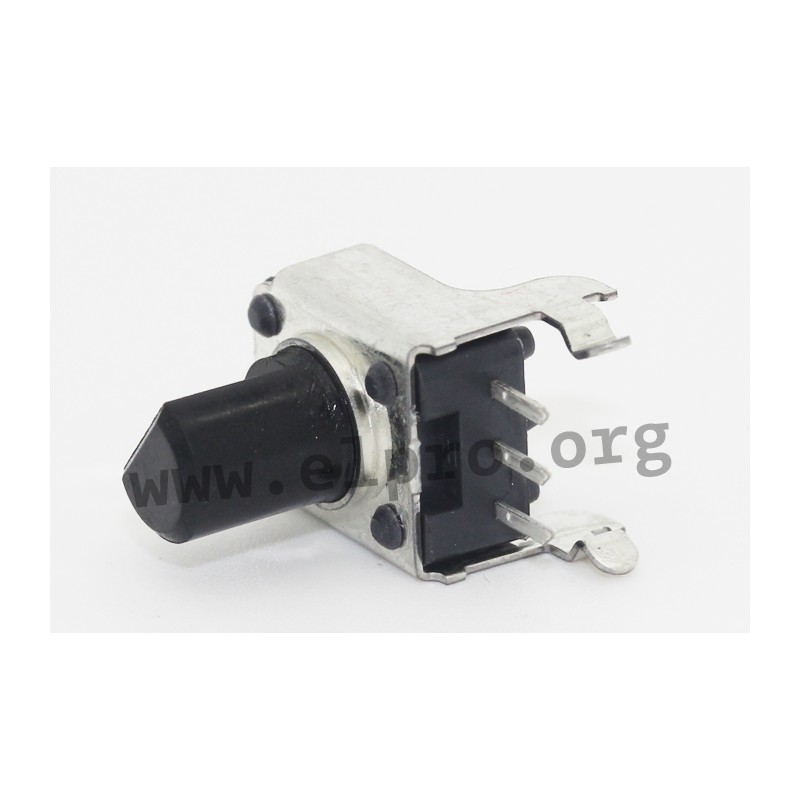

RK09K1110AK4

carbon rotary potentiometers RK09K/D by Alps

* series: RK09K, RK09D
* mono linear (B) and positive logarithmic (A)
* rated power

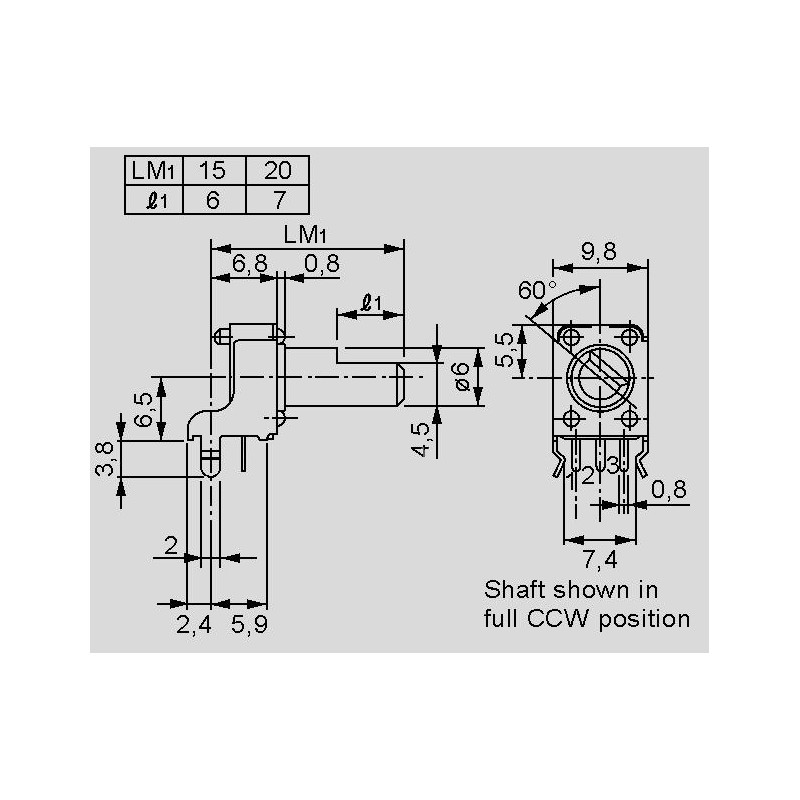

* shaft: plastic, Ø6mm
* housing: 9.8mm
* rated power
single: 0.05W
dual: 0.03W
* operating voltage, max. single: 50VAC / 20VDC
dual: 50V AC
* insulation voltage (1min): 250V AC
* insulation resistance: >100MW / 250V DC
* resistance tolerance
single: ±20%
dual: ±30%
* rotation angle, mechanical
RK09K_: 280° ±5°
RK09D_: 300° ±5°
dual: 280° ±5°
* operating torque: 1...8mN*m
* lifetime
single: 5x103 operations
dual: 10x103 operations
* temperature range: -10°C...+70°C
* by Alps

RK09K1110AK4

32738 RK09K1110AK4 RK09K1110AK4 carbon rotary potentiometers RK09K/D by Alps. * series: RK09K, RK09D* mono linear (B) and positive logarithmic (A)* rated power* shaft: plastic, Ø6mm * housing: 9.8mm* rated power single: 0.05Wdual: 0.03W* operating voltage, max. single: 50VAC / 20VDCdual: 50V AC* insulation voltage (1min): 250V AC* insulation resistance: >100MW / 250V DC* resistance tolerance single: ±20%dual: ±30%* rotation angle, mechanicalRK09K_: 280° ±5°RK09D_: 300° ±5°dual: 280° ±5°* operating torque: 1...8mN*m* lifetime single: 5x103 operationsdual: 10x103 operations* temperature range: -10°C...+70°C* by Alps

Specifications

manufacturer
Manufacturer's name RK09K1110AK4
Design mono
Type horizontal
Button abgeflacht
Center detent no
Drag curve lin (1B)
Resistance [kΩ] 10
Shaft length [mm] 15
Rotation angle, complete [°] 280°±5
Power, max. [W] 0,05
Data Sheet

Unit price

0,471 €

Stock: 2157
Further delivery:
CW 16/2025

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
