EC12E1220405

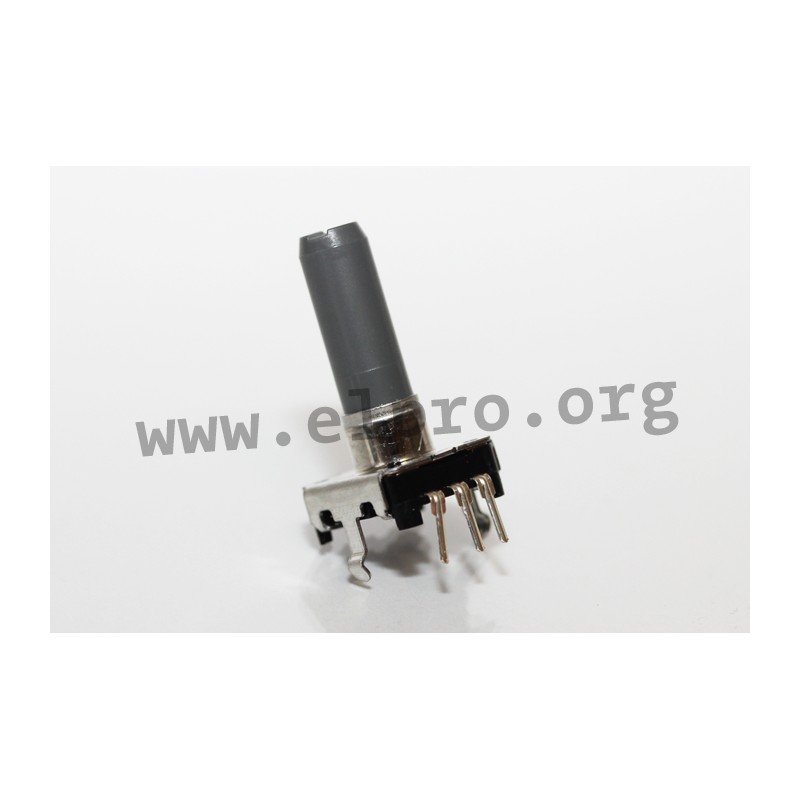

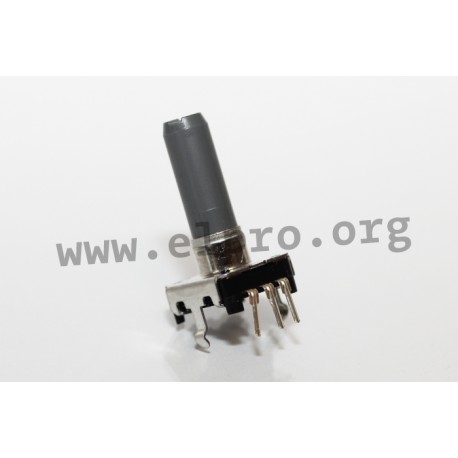

ALPS potentiometer series EC11 and EC12

  • vertical type incremental encoders
  • with a Ø6mm plastic (EC12_) resp. metal shaft (EC11_)
  • suitable for SMD or THT mounting
  • partly with a push-on switch (EC11E15244G1/EC12D1564402)
  • rotation angle: 360° (mechanical)
  • rated voltage: 5VDC
EC12E1220405

EC12E1220405

42765 EC12E1220405 EC12E1220405 ALPS potentiometer series EC11 and EC12. vertical type incremental encoders with a Ø6mm plastic (EC12_) resp. metal shaft (EC11_)  suitable for SMD or THT mounting  partly with a push-on switch (EC11E15244G1/EC12D1564402)  rotation angle: 360° (mechanical) rated voltage: 5VDC

Specifications

manufacturer
Manufacturer's name EC12E1220405
Design THT
Operating temperature range [°C] -10...+70
Starting rated current [mA] 0,5
Features plain collar
Number of detend 12
Number of pulse 12
Data Sheet

Unit price

0,689 €

Stock: 500
Further delivery:
CW 21/2025

Minimum order quantity 10 units or
multiples of 10.
