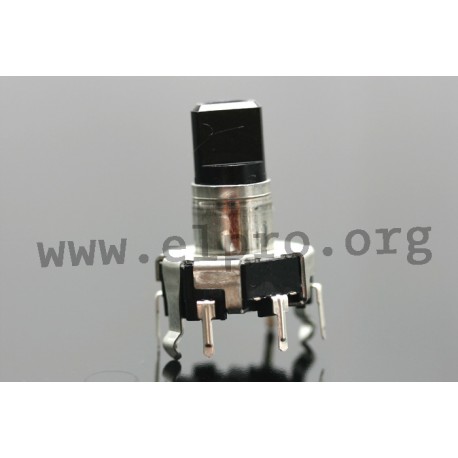

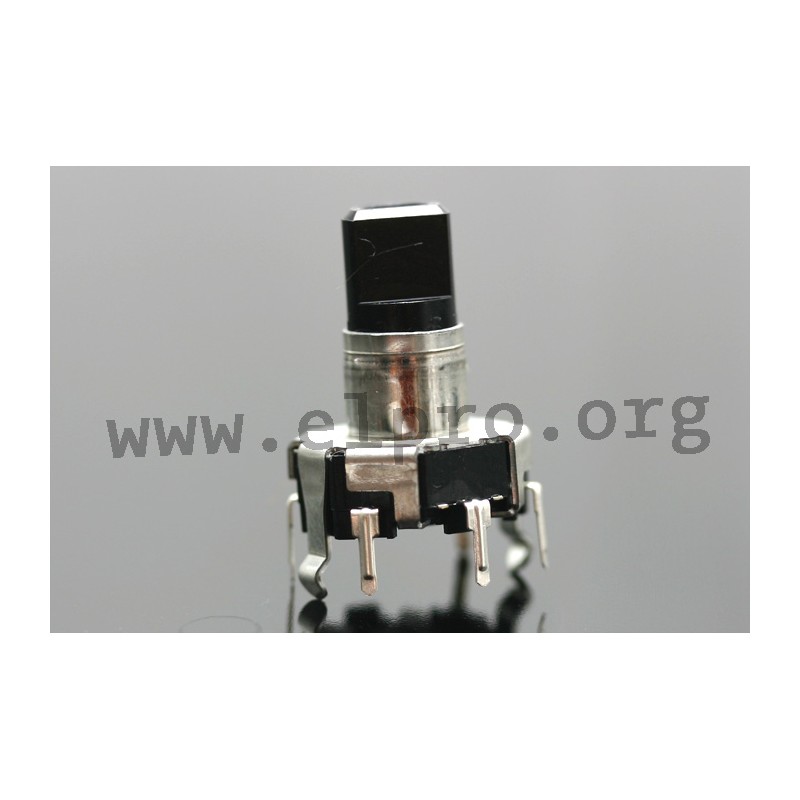

EC12D1564402

ALPS potentiometer series EC11 and EC12

  • vertical type incremental encoders
  • with a Ø6mm plastic (EC12_) resp. metal shaft (EC11_)
  • suitable for SMD or THT mounting
  • partly with a push-on switch (EC11E15244G1/EC12D1564402)
  • rotation angle: 360° (mechanical)
  • rated voltage: 5VDC
EC12D1564402

EC12D1564402

42739 EC12D1564402 EC12D1564402 ALPS potentiometer series EC11 and EC12. vertical type incremental encoders with a Ø6mm plastic (EC12_) resp. metal shaft (EC11_)  suitable for SMD or THT mounting  partly with a push-on switch (EC11E15244G1/EC12D1564402)  rotation angle: 360° (mechanical) rated voltage: 5VDC

Specifications

manufacturer
Manufacturer's name EC12D1564402
Design THT
Operating temperature range [°C] -40...+85
Starting rated current [mA] 1
Features push-on-switch
Number of detend 30
Number of pulse 15
Data Sheet

Unit price

0,686 €

Stock: 130
Next incoming goods:
CW 03/2025
800 units

Further delivery:
CW 20/2025

Minimum order quantity 5 units or
multiples of 5.
