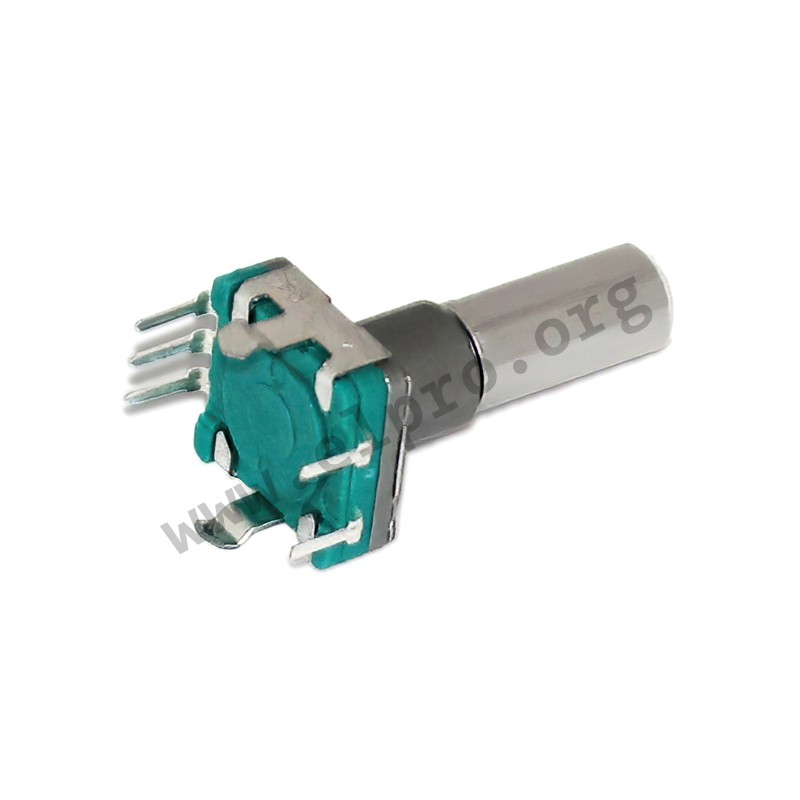

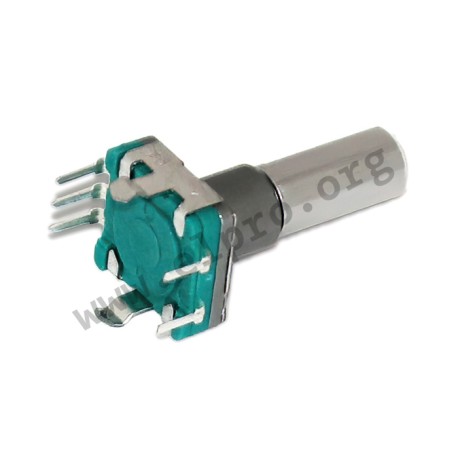

EC11E15204A3

ALPS potentiometer series EC11 and EC12

  • vertical type incremental encoders
  • with a Ø6mm plastic (EC12_) resp. metal shaft (EC11_)
  • suitable for SMD or THT mounting
  • partly with a push-on switch (EC11E15244G1/EC12D1564402)
  • rotation angle: 360° (mechanical)
  • rated voltage: 5VDC
EC11E15204A3, ALPS encoders, 6mm, EC11 and EC12 series

EC11E15204A3

136947 EC11E15204A3 EC11E15204A3 ALPS potentiometer series EC11 and EC12. vertical type incremental encoders with a Ø6mm plastic (EC12_) resp. metal shaft (EC11_)  suitable for SMD or THT mounting  partly with a push-on switch (EC11E15244G1/EC12D1564402)  rotation angle: 360° (mechanical) rated voltage: 5VDC

Specifications

manufacturer
Manufacturer's name EC11E15204A3
Design THT
Operating temperature range [°C] -30...+85
Starting rated current [mA] 10
Features push-on-switch
Number of detend 30
Number of pulse 15

Unit price

1,29 €

Stock: 50
Further delivery:
CW 20/2025

Minimum order quantity 5 units or
multiples of 5.
