> Passive elements>Potentiometers>Trimmer potentiometers>ACP trimmer potentiometers, 0,25W, horizontal, CA14NV series>TRA L 500 R

Manufacturers

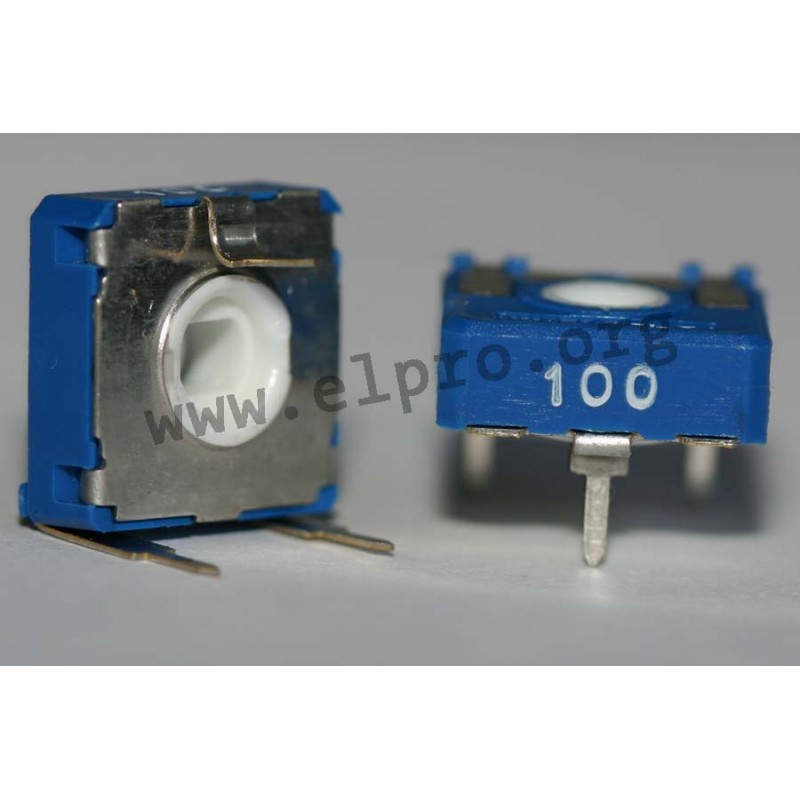

TRA L 500 R

pitch 10/12.5mm

* horizontal
* plastic carbon film resistive element on an extra flexible conductive foil (carbon trimmer)
* resistant against humidity and corrosion
* fully sealed housing, dust and colophony proof, protected against harmful influences
* metal parts made from non-ferrous metal which prevents oxidation and increases solderability
* excellent contact between connectors and substrate, reduces contact resistance
* used plastics are resistant against cleaning solutions and self-extinguishable class HB according to UL94
* very soft, smooth movement of the wiper over the track
* rectangular form allows automatic use
* dual mid position contact wiper
* pointer position readable on scalar
* taper: linear, according to DIN 41450-1-4-5
* power rating (TU = 40°C): 0.25W
* operating voltage, max.: 250V
* temperature range: -25°...+70°C
ACP series CA14

TRA L 500 R

10417 TRA L 500 R CA14NV12,5-500RA2020 CA14NV12,5-500RA2020 pitch 10/12.5mm. * horizontal* plastic carbon film resistive element on an extra flexible conductive foil (carbon trimmer)* resistant against humidity and corrosion* fully sealed housing, dust and colophony proof, protected against harmful influences* metal parts made from non-ferrous metal which prevents oxidation and increases solderability* excellent contact between connectors and substrate, reduces contact resistance* used plastics are resistant against cleaning solutions and self-extinguishable class HB according to UL94* very soft, smooth movement of the wiper over the track* rectangular form allows automatic use* dual mid position contact wiper* pointer position readable on scalar* taper: linear, according to DIN 41450-1-4-5* power rating (TU = 40°C): 0.25W* operating voltage, max.: 250V* temperature range: -25°...+70°C

Specifications

manufacturer
Manufacturer's name CA14NV12,5-5...
Resistance [Ω] 500
Power, max. [W] 0,25
Data Sheet

Unit price

0,20 €

Stock: 1488
Further delivery:
CW 04/2025

Minimum order quantity 1 to 13 units or multiples of 25 plus 0 to 13 .
