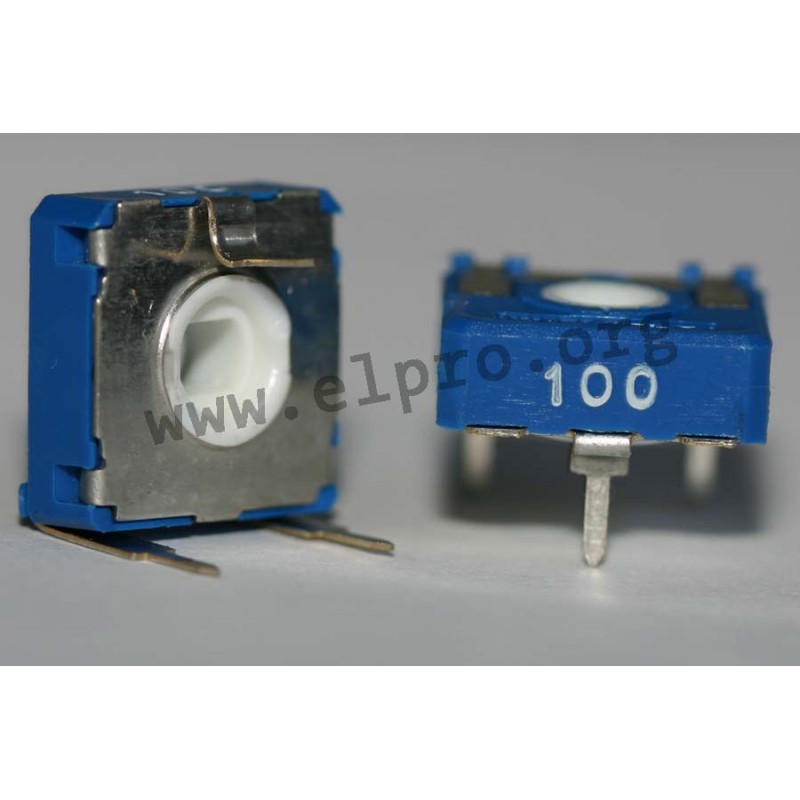

TRA L 2,5 M

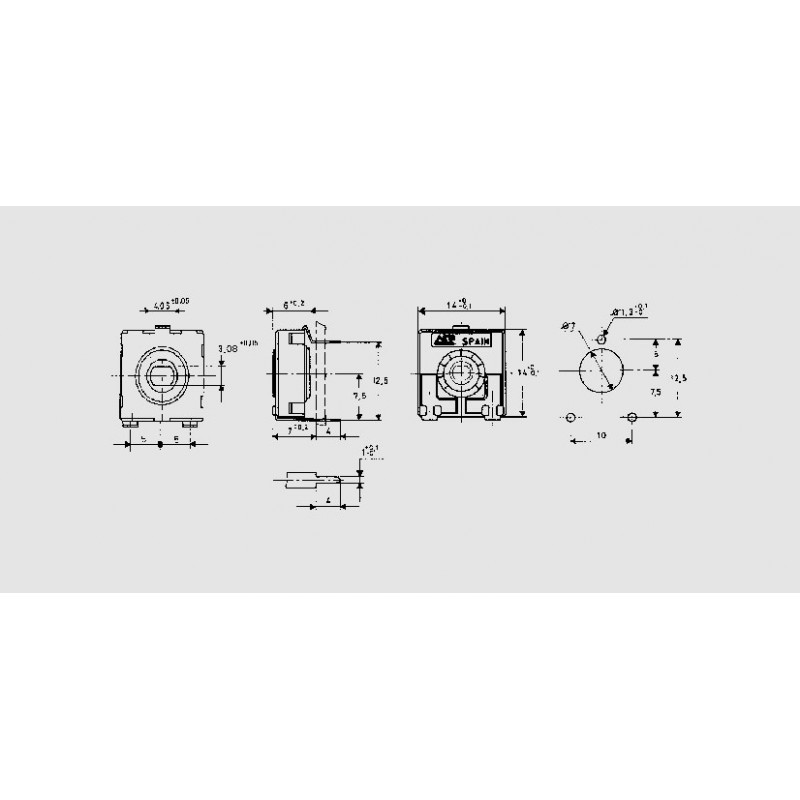

pitch 10/12.5mm

• horizontal
• plastic carbon film resistive element on an extra flexible conductive foil (carbon trimmer)
• resistant against humidity and corrosion
• fully sealed housing, dust and colophony proof, protected against harmful influences
• metal parts made from non-ferrous metal which prevents oxidation and increases solderability
• excellent contact between connectors and substrate, reduces contact resistance
• used plastics are resistant against cleaning solutions and self-extinguishable class HB according to UL94
• very soft, smooth movement of the wiper over the track
• rectangular form allows automatic use
• dual mid position contact wiper
• pointer position readable on scalar
• taper: linear, according to DIN 41450-1-4-5
• power rating (TU = 40°C): 0.25W
• operating voltage, max.: 250V
• temperature range: -25°...+70°C
ACP series CA14

TRA L 2,5 M

10409 TRA L 2,5 M CA14NV12,5-2M5A3030 CA14NV12,5-2M5A3030 pitch 10/12.5mm. * horizontal* plastic carbon film resistive element on an extra flexible conductive foil (carbon trimmer)* resistant against humidity and corrosion* fully sealed housing, dust and colophony proof, protected against harmful influences* metal parts made from non-ferrous metal which prevents oxidation and increases solderability* excellent contact between connectors and substrate, reduces contact resistance* used plastics are resistant against cleaning solutions and self-extinguishable class HB according to UL94* very soft, smooth movement of the wiper over the track* rectangular form allows automatic use* dual mid position contact wiper* pointer position readable on scalar* taper: linear, according to DIN 41450-1-4-5* power rating (TU = 40°C): 0.25W* operating voltage, max.: 250V* temperature range: -25°...+70°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name CA14NV12,5-2...
Resistance [Ω] 2,5M
Power, max. [W] 0,25
Data Sheet

Unit price

0,23 €

Stock: 9
