TRA S 100 R

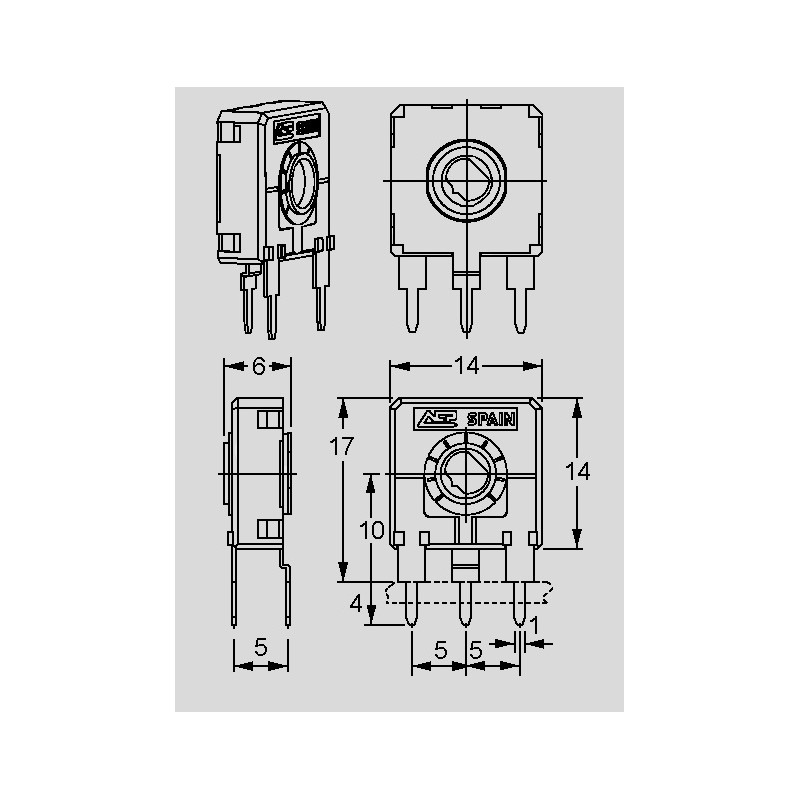

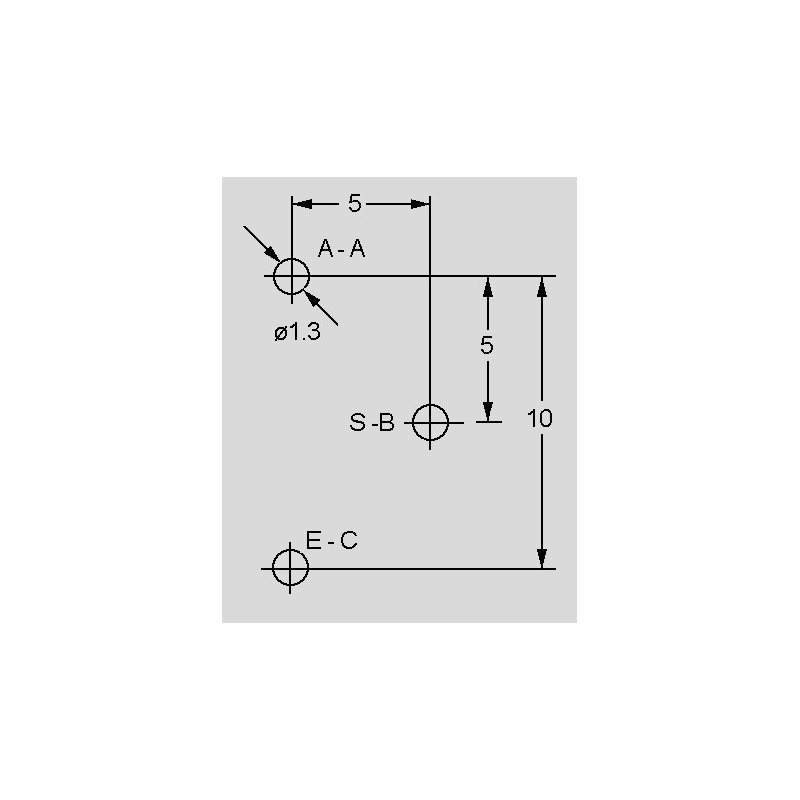

pitch 10/5mm

* plastic carbon film resistive element on an extra flexible conductive foil (carbon trimmer)
* resistant against humidity and corrosion
* fully sealed housing, dust and colophony proof, protected against harmful influences
* metal parts made from non-ferrous metal which prevents oxidation and increases solderability
* excellent contact between connectors and substrate, reduces contact resistance
* used plastics are resistant against cleaning solutions and self-extinguishable class HB according to UL94
* very soft, smooth movement of the wiper over the track
* rectangular form allows automatic use
* dual mid position contact wiper
* pointer position readable on scalar
* taper: linear, according to DIN 41450-1-4-5
* power rating (TU = 40°C): 0.25W
* operating voltage, max.: 250V
* temperature range: -25°...+70°C
CA14NH by ACP

TRA S 100 R

10422 TRA S 100 R CA14NH05-100RA2020 CA14NH05-100RA2020 pitch 10/5mm. * plastic carbon film resistive element on an extra flexible conductive foil (carbon trimmer)* resistant against humidity and corrosion* fully sealed housing, dust and colophony proof, protected against harmful influences* metal parts made from non-ferrous metal which prevents oxidation and increases solderability* excellent contact between connectors and substrate, reduces contact resistance* used plastics are resistant against cleaning solutions and self-extinguishable class HB according to UL94* very soft, smooth movement of the wiper over the track* rectangular form allows automatic use* dual mid position contact wiper* pointer position readable on scalar* taper: linear, according to DIN 41450-1-4-5* power rating (TU = 40°C): 0.25W* operating voltage, max.: 250V* temperature range: -25°...+70°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name CA14NH05-100RA2020
Resistance [Ω] 100
Power, max. [W] 0,25
Data Sheet

Unit price

0,20 €

Stock: 60

Minimum order quantity 1 to 10 units or multiples of 25 plus 0 to 10 .
