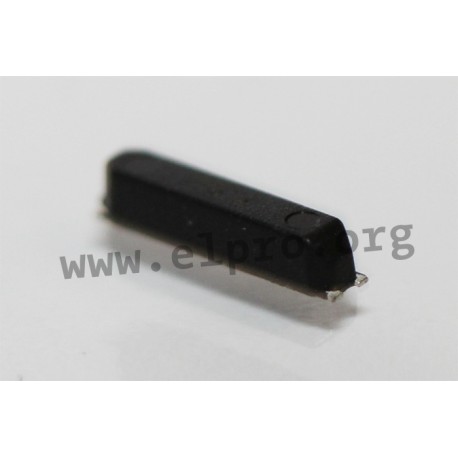

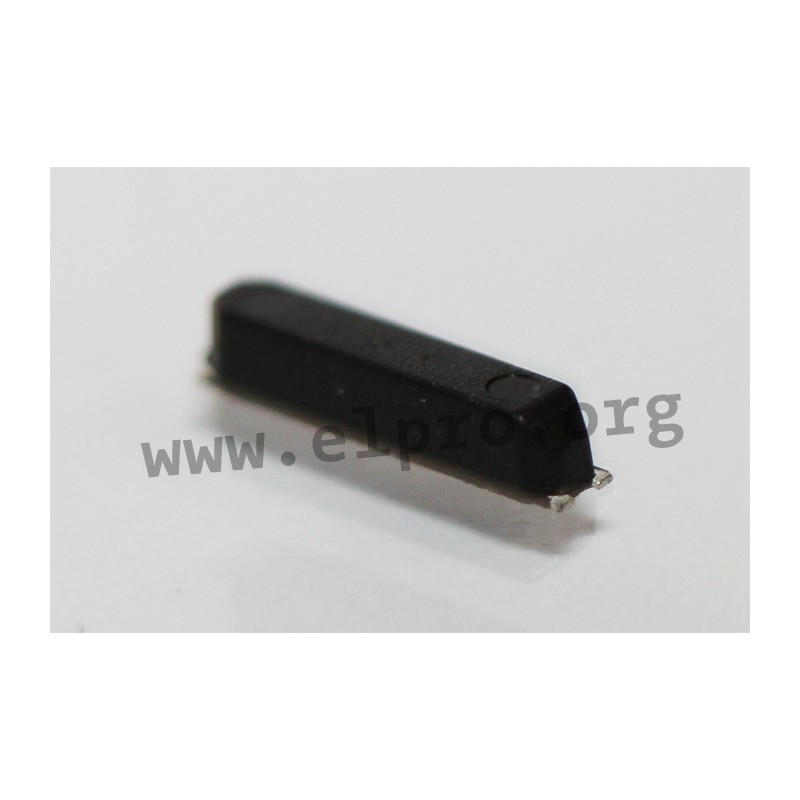

ZM146-32.768K-20-12.5P

Abundance clock quartz crystal series ZM

  • clock quartz crystals with a maximal drive level of 1µW
  • suitable for direct PCB mounting (SMD)
  • frequency: 32,768kHz
ZM146-32.768K-20-12.5P

ZM146-32.768K-20-12.5P

41693 ZM146-32.768K-20-12.5P ZM146-32.768K-20-12.5P Abundance clock quartz crystal series ZM. clock quartz crystals with a maximal drive level of 1µW suitable for direct PCB mounting (SMD) frequency: 32,768kHz

Specifications

manufacturer
Manufacturer's name ZM146-32.768...
Case SMD
Operating temperature range [°C] -40...+85
(TU=25°C) ±20ppm
Load capacitance [pF] 12,5
Frequency tolerance [ppm] ±20ppm
Frequency [kHz] 32,768
Data Sheet

Unit price

0,758 €

Stock: 2975
Further delivery:
CW 08/2025

Minimum order quantity 25 units or
multiples of 25.
