> Passive elements>Quartz crystals / oscillators>Quartz crystals>Abundance clock quartz crystals, DT26 and DT38 series>Q 32,768 kHz TC 38

Manufacturers

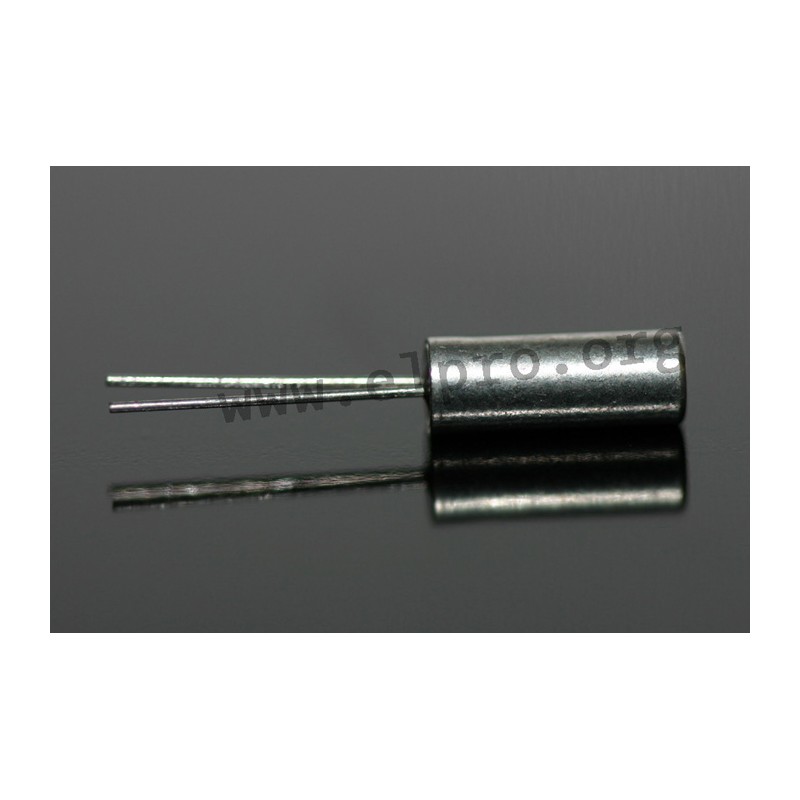

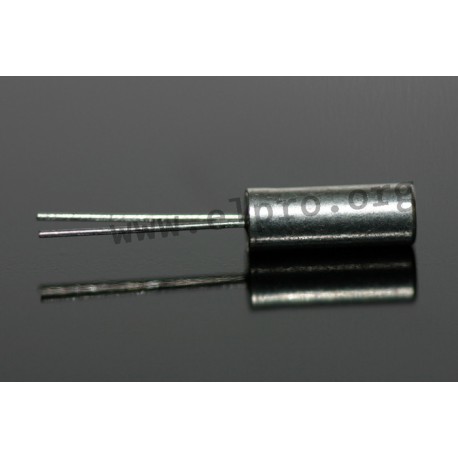

Q 32,768 kHz TC 38

Abundance clock quartz crystal series DT26 and DT38

  • quartz crystals in a TC 26 and TC 38 housing
  • with a low power consumption
  • frequency: 32,768kHz

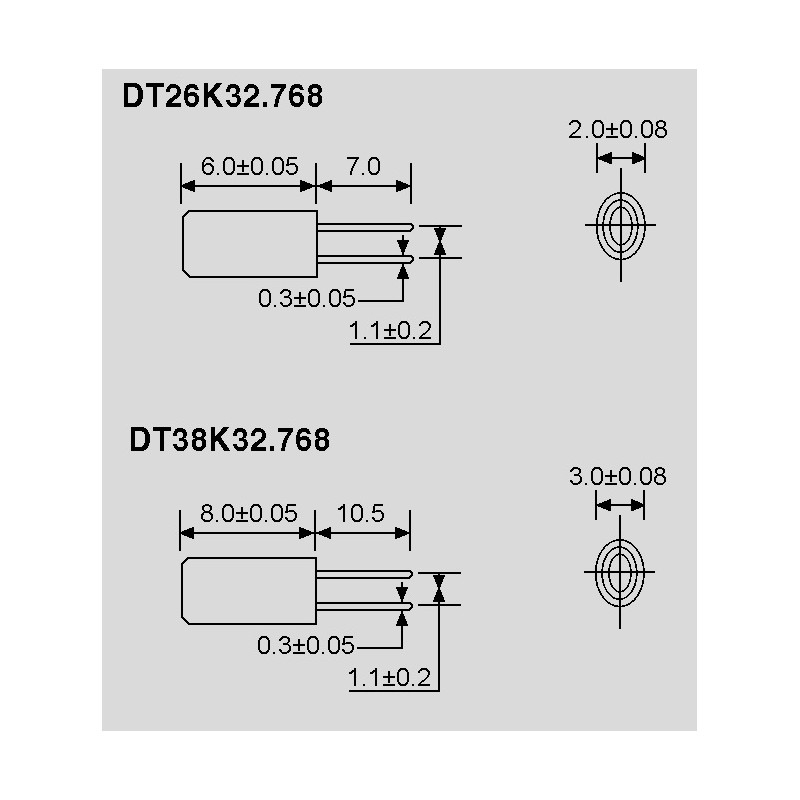

housing TC 38

Q 32,768 kHz TC 38

3753 Q 32,768 kHz TC 38 DT38-32,768K-10-12,5 DT38-32,768K-10-12,5 Abundance clock quartz crystal series DT26 and DT38. quartz crystals in a TC 26 and TC 38 housing with a low power consumption frequency: 32,768kHz

Specifications

manufacturer
Manufacturer's name DT38-32,768K...
Case TC 38
Operating temperature range [°C] -20...+70
(TU=25°C) ±10ppm
Load capacitance [pF] 12,5
Frequency tolerance [ppm] ±10ppm
Frequency [kHz] 32,768
Data Sheet

Unit price

0,146 €

Stock: 13606
Further delivery:
CW 29/2025

Minimum order quantity 1 to 6 units or multiples of 25 plus 0 to 6 .
