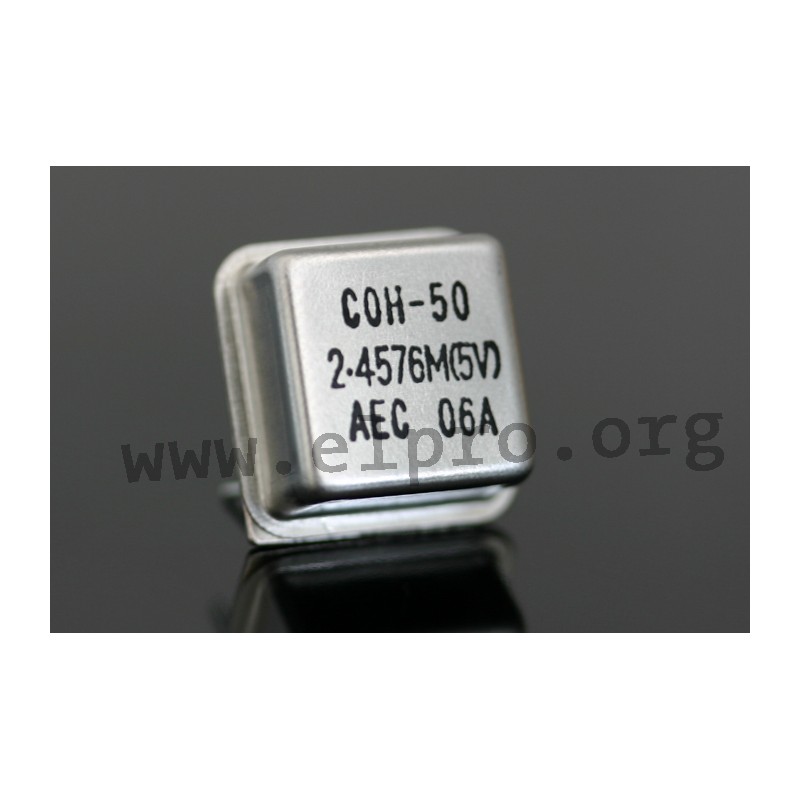

QO 10 MHz D8

crystal oscillators

• in metal housing
• housing: DIL08
• frequence: 2.5476 to 40 MHz
• consisting of piezoelectric
• series COH_ by Abundance
• resonator and oscillator circuit
• high reliability due to hermetically sealed metal housing
• frequency tolerance: ±100ppm
• operating temperature range: -20 to +70°C
• operating voltage (VDD): 5 Volt DC
• max. current requirement
1.843 to 21.9 MHz: 15 mA
22 to 49.9 MHz: 30 mA
• symmetry at 50% VDD tight: 45 to 55%
• rise time/fall time
1,843 to 20 MHz: 10ns
24 to 64 MHz: 6ns
• output voltage, max.
"1"-Level: +4.5V(90% VDD)
"0"-Level: +0.5V(10% VDD)
• output load: 15pF typ. or 1 to 10 TTL max

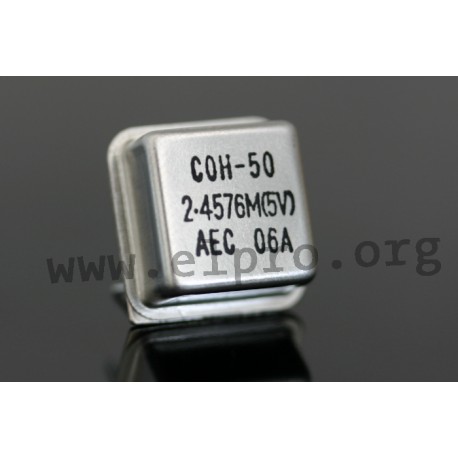

QO 2,4576 MHz D8

QO 10 MHz D8

28719 QO 10 MHz D8 COH-10M-100-20/70-5V COH-10M-100-20/70-5V crystal oscillators. • in metal housing• housing: DIL08• frequence: 2.5476 to 40 MHz• consisting of piezoelectric• series COH_ by Abundance• resonator and oscillator circuit• high reliability due to hermetically sealed metal housing• frequency tolerance: ±100ppm• operating temperature range: -20 to +70°C• operating voltage (VDD): 5 Volt DC• max. current requirement1.843 to 21.9 MHz: 15 mA22 to 49.9 MHz: 30 mA• symmetry at 50% VDD tight: 45 to 55%• rise time/fall time1,843 to 20 MHz: 10ns24 to 64 MHz: 6ns• output voltage, max."1"-Level: +4.5V(90% VDD)"0"-Level: +0.5V(10% VDD)• output load: 15pF typ. or 1 to 10 TTL max

Specifications

manufacturer
Manufacturer's name COH-10M-100-...

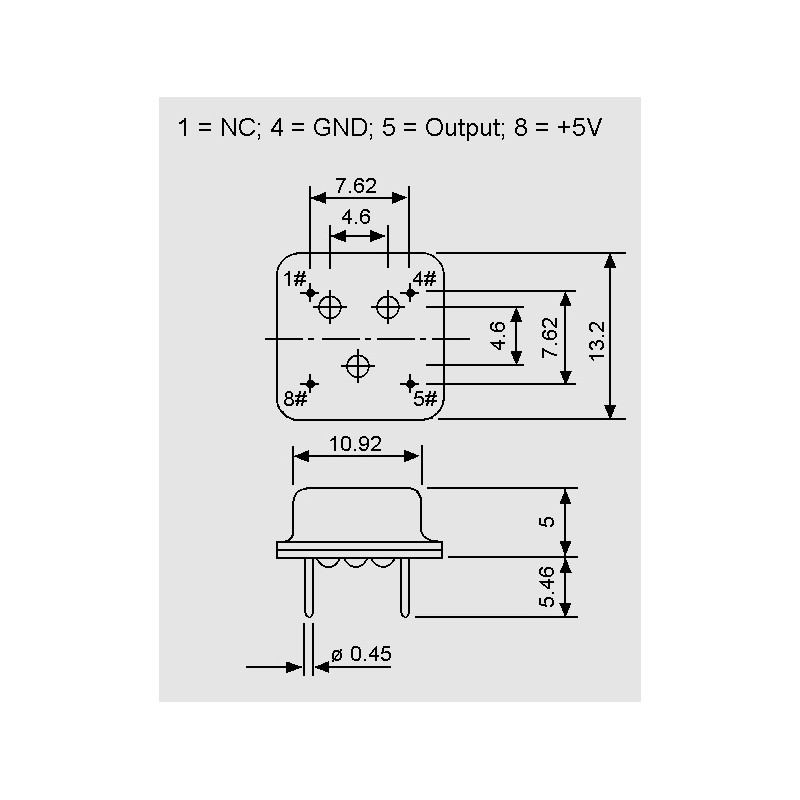

Case DIL08
Frequency [MHz] 10

Unit price

1,29 €

Stock: 0
Further delivery:
CW 03/2025

Minimum order quantity 5 units or
multiples of 5.
