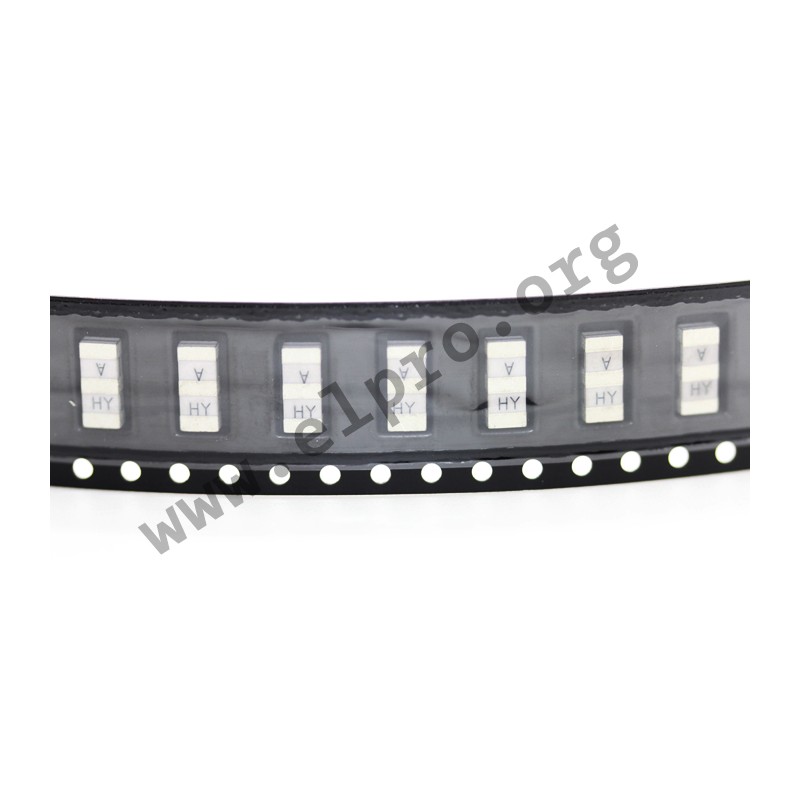

ACLTCS10.7BW510

Abundance ceramic filter series ACLT

Monolithic ceramic filters in an SMD housing with a frequency of 10,7MHz. These devices have a compact size (7x3x1,5mm resp. 3,45x3,1x1,4mm) and are suitable for direct PCB mounting. They have 3 (ACLTCV_) resp 6 soldering pads (ACLTCS_). We offer the following types of this Abundance series: ACLTCV10.7BW320, ACLTCV10.7BW380, ACLTCV10.7BW470, ACLTCV10.7BW510, ACLTCV10.7BW590, ACLTCV10.7BW950, ACLTCS10.7BW470, ACLTCS10.7BW510 and ACLTCS10.7BW590.

  • center frequency: 10,7MHz ±0,03
  • insulation resistance: 100MOhm
  • operating temperature: -20 to +80°C
ACLTCS10.7BW510, Abundance ceramic filters, SMD, 10,7MHz, ACLT series

ACLTCS10.7BW510

242964 ACLTCS10.7BW510 ACLTCS10.7BW510 Abundance ceramic filter series ACLT. Monolithic ceramic filters in an SMD housing with a frequency of 10,7MHz. These devices have a compact size (7x3x1,5mm resp. 3,45x3,1x1,4mm) and are suitable for direct PCB mounting. They have 3 (ACLTCV_) resp 6 soldering pads (ACLTCS_). We offer the following types of this Abundance series: ACLTCV10.7BW320, ACLTCV10.7BW380, ACLTCV10.7BW470, ACLTCV10.7BW510, ACLTCV10.7BW590, ACLTCV10.7BW950, ACLTCS10.7BW470, ACLTCS10.7BW510 and ACLTCS10.7BW590. center frequency: 10,7MHz ±0,03 insulation resistance: 100MOhm operating temperature: -20 to +80°C

Specifications

manufacturer
Manufacturer's name ACLTCS10.7BW510
Impedance [Ω] 330
Typ. bandwidth [kHz] 230±50
Dimensions [mm] 3,45x3,1x1,3
Data Sheet

Unit price

0,675 €

Stock: 4000
Further delivery:
CW 10/2025

Minimum order quantity 10 units or
multiples of 10.
