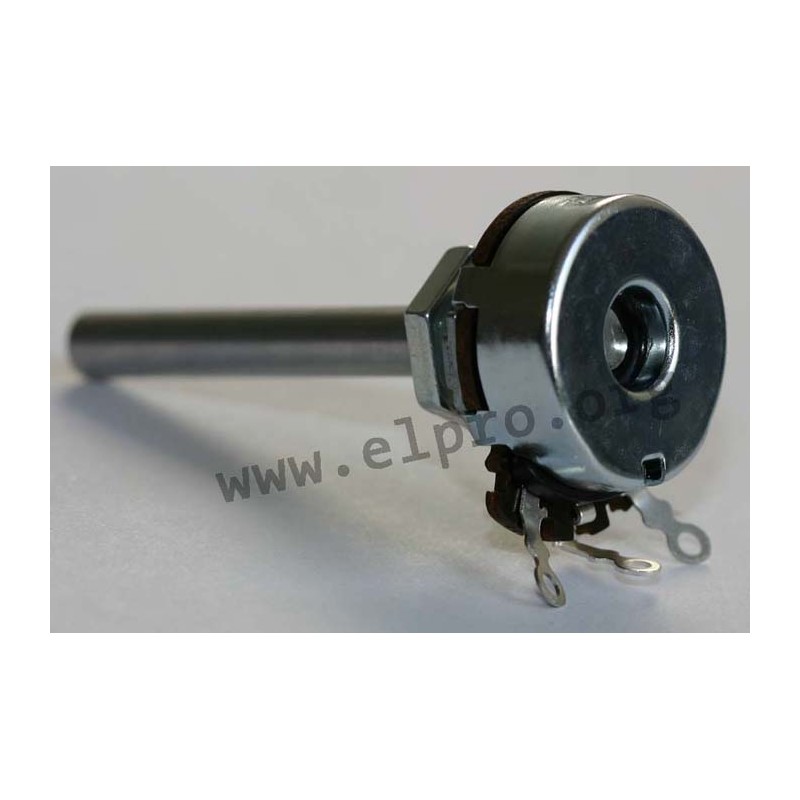

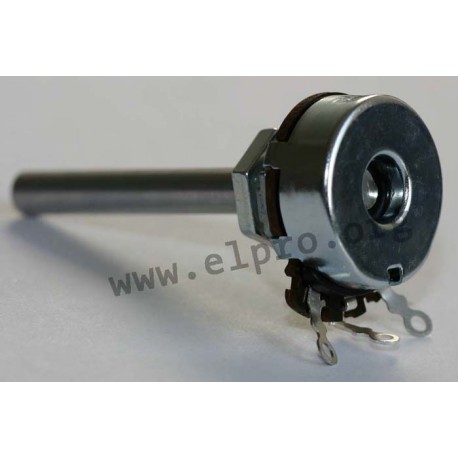

AW lin 4,7 R

6mm, 4 Watt

* linear
* rated dissipation (40°C): 4W

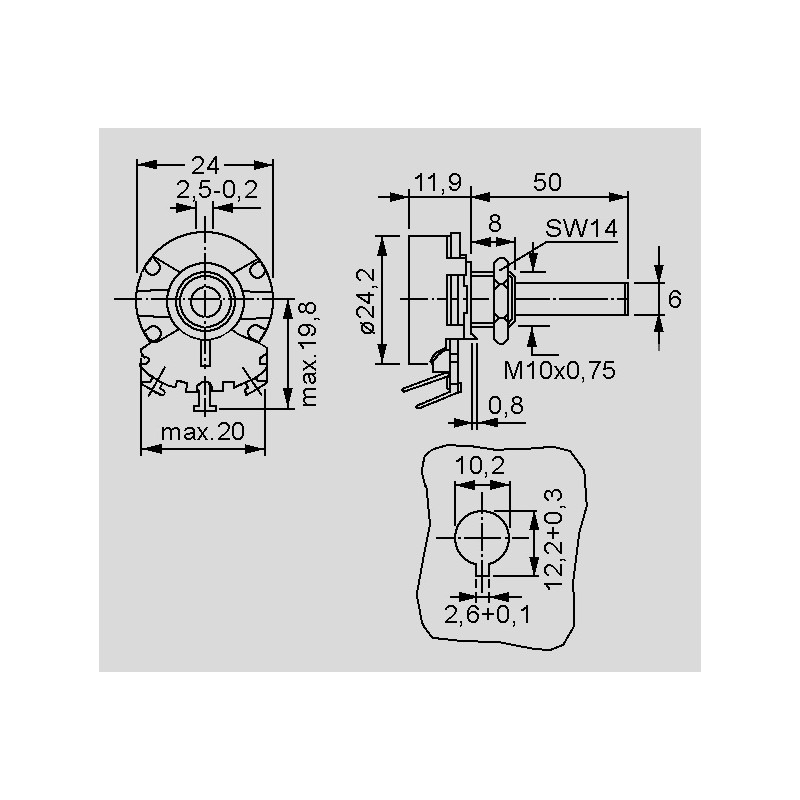

* shaft: metal, Ø6,0mm
* housing: Ø24mm
* hold-off voltage: 500V
* insulation voltage: 1KV~
* independent linearity: ±2%
* mechanical rotation angle300° ±10°
* electrical rotation angle: 280° ±5°
* operating torque: 0.7...3.6Ncm
* end stop torque: 115Ncm
* temperature range: -40...+90°C
* by AB Elektronik


AW lin 4,7 R

AW lin 4,7 R

5159 AW lin 4,7 R 3104601340 3104601340 6mm, 4 Watt. * linear* rated dissipation (40°C): 4W* shaft: metal, Ø6,0mm * housing: Ø24mm* hold-off voltage: 500V* insulation voltage: 1KV~* independent linearity: ±2%* mechanical rotation angle300° ±10°* electrical rotation angle: 280° ±5°* operating torque: 0.7...3.6Ncm* end stop torque: 115Ncm* temperature range: -40...+90°C* by AB Elektronik

Specifications

manufacturer
Manufacturer's name 3104601340
Resistance [Ω] 5
Tolerance [%] ±20
Power, max. [W] 4
Resolution [%] 0,7
Temperature coefficient [°C] ±13000
Data Sheet

Unit price

5,59 €

Stock: 25
Next incoming goods:
CW 03/2025
100 units

Further delivery:
CW 14/2025

Minimum order quantity 5 units or
multiples of 5.
