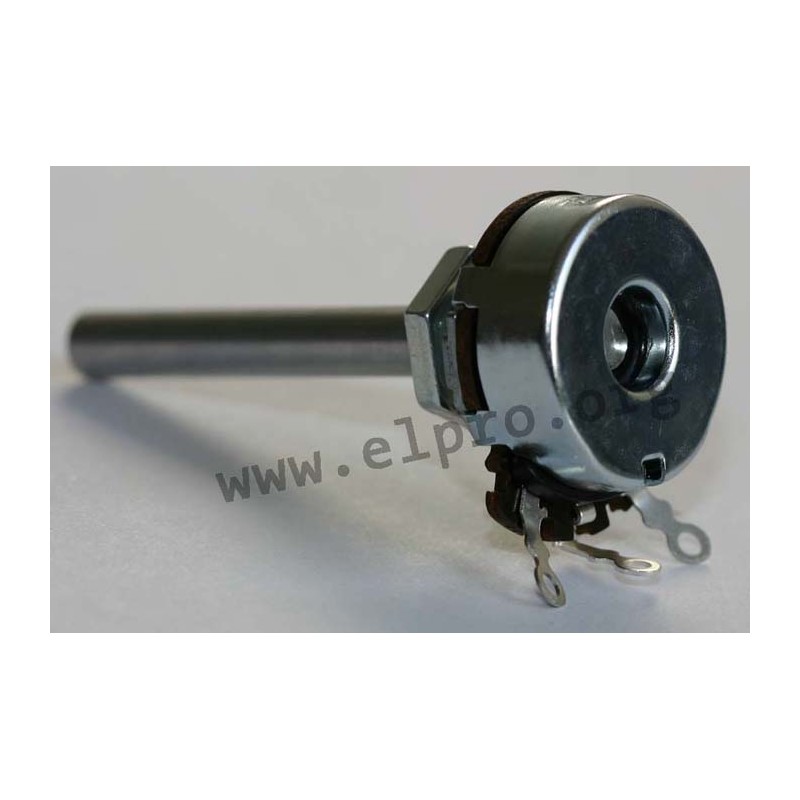

AW lin 470 R

6mm, 4 Watt

• linear
• rated dissipation (40°C): 4W
• shaft: metal, Ø6,0mm
• housing: Ø24mm
• hold-off voltage: 500V
• insulation voltage: 1KV~
• independent linearity: ±2%
• mechanical rotation angle300° ±10°
• electrical rotation angle: 280° ±5°
• operating torque: 0.7...3.6Ncm
• end stop torque: 115Ncm
• temperature range: -40...+90°C
• by AB Elektronik

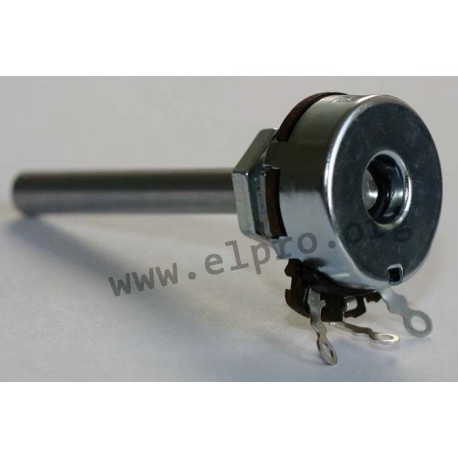

AW lin 470 R

AW lin 470 R

27642 AW lin 470 R 3104605593 3104605593 6mm, 4 Watt. * linear* rated dissipation (40°C): 4W* shaft: metal, Ø6,0mm * housing: Ø24mm* hold-off voltage: 500V* insulation voltage: 1KV~* independent linearity: ±2%* mechanical rotation angle300° ±10°* electrical rotation angle: 280° ±5°* operating torque: 0.7...3.6Ncm* end stop torque: 115Ncm* temperature range: -40...+90°C* by AB Elektronik

Specifications

manufacturer
Manufacturer's name 3104605593
Resistance [Ω] 500
Tolerance [%] ±10
Power, max. [W] 4
Resolution [%] 0,35
Temperature coefficient [°C] +140
Data Sheet

Unit price

5,59 €

Stock: 348
Further delivery:
CW 26/2025

Minimum order quantity 1 to 3 units or multiples of 5 plus 0 to 3 .
