> Passive elements>Potentiometers>Rotary potentiometers>AB-Elektronik wirewound rotary potentiometers, 6mm, 10W, 10 W series>10 W lin 2,2 k

Manufacturers

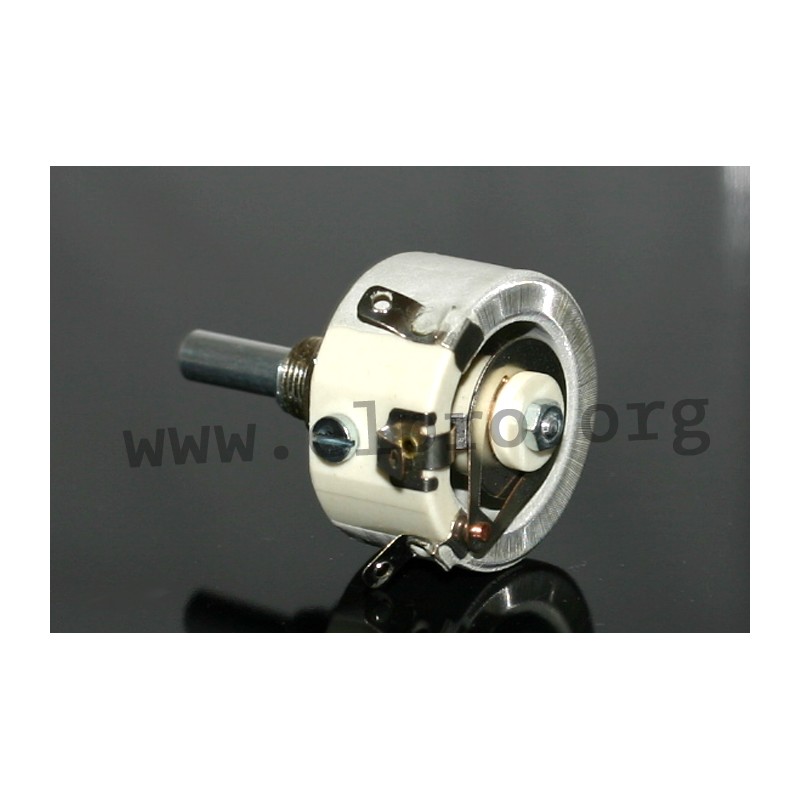

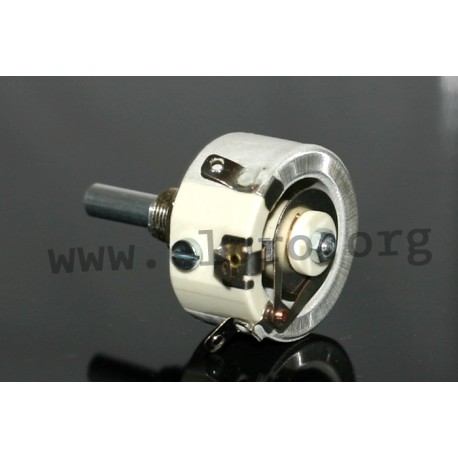

10 W lin 2,2 k

6mm, 10 W

* linear
* rated dissipation (40°C): 10W
* shaft: metal, Ø6mm
* housing: 35mm
* high power rating
* cement coating
* ceramic bobbin
* tinned solder tag terminals
* insulation voltage: 2000Vrms
* mechanical rotation: 266°
* electrical rotation: 250°
* weight: 50g
* by AB Elektronik

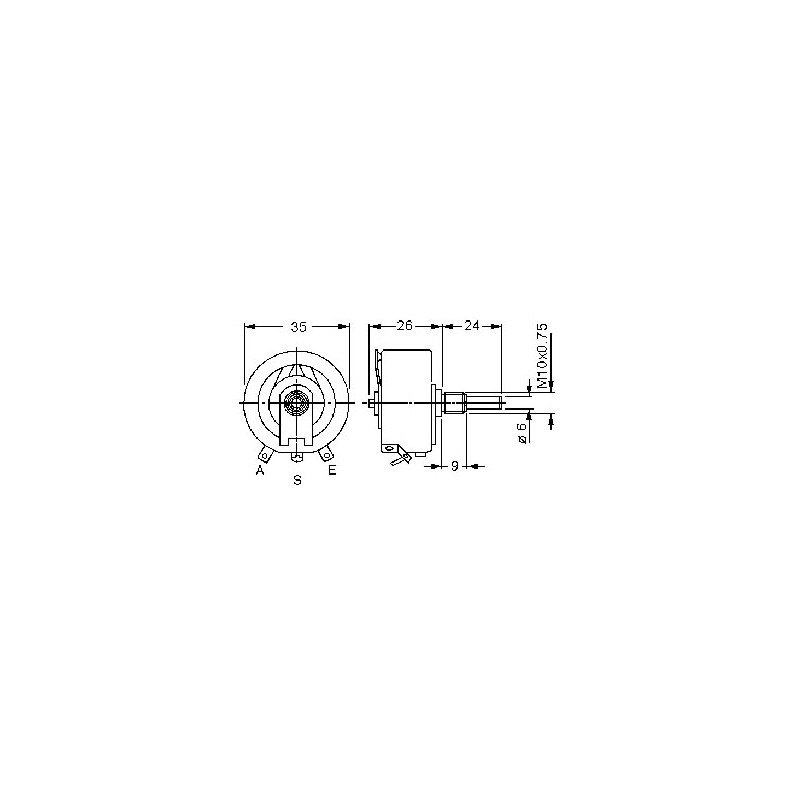

dimensions

10 W lin 2,2 k

5072 10 W lin 2,2 k 3191006700 3191006700 6mm, 10 W. * linear* rated dissipation (40°C): 10W* shaft: metal, Ø6mm * housing: 35mm* high power rating* cement coating* ceramic bobbin* tinned solder tag terminals* insulation voltage: 2000Vrms* mechanical rotation: 266°* electrical rotation: 250°* weight: 50g* by AB Elektronik

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 3191006700
Resistance [Ω] 2,2k
Power, max. [W] 10
Data Sheet

Unit price

58,59 €

Stock: 10
