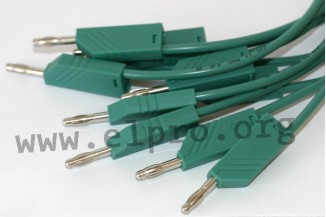

measuring leads, 4mm system

• by Hirschmann
• contact: spring-loaded pin
• 4mm connector with cage spring and socket for tower construction
and 4mm Buchse on both ends for Turmsteckbauweise
• flexible, double-isnulated stranded lead
• cable type: LEH-...

measuring leads, 4mm system

• by Hirschmann
• contact: spring-loaded pin
• 4mm connector with cage spring and socket for tower construction
and 4mm Buchse on both ends for Turmsteckbauweise
• flexible, double-isnulated stranded lead
• cable type: LEH-XY
• lead cross-section MLN _/1: 1mm²
• lead cross-section MLN _/2,5: 2,5mm²
• lead design MLN _/1: 259x0.07
• lead design MLN _/2,5: 320x0.1
• cable material: PVC (UL 94 V-2)
• rated voltage: 60V DC
• rated current MLN _/1: 16A
• rated current MLN _/2,5: 32A
• contact pin: brass, nickel-plated
• contact spring: copper-berrylium, nickel-plated
• housing: polyamide (UL 94 HB)
• operating temperature range: -15...+70°C
• resistance, MLN 50/1: 13mΩ
• resistance, MLN 100/1: 22mΩ
• resistance, MLN 150/1: 34mΩ
• resistance, MLN 200/1: 40mΩ
• resistance, MLN 25/2,5: 6mΩ
• resistance, MLN 100/2,5: 12mΩ
