safety test probes SPS by Schützinger

SPS 2381

• with axial safety socket
• socket Ø 4mm
• both ends can be used individually. One end has a 5mm spring loaded steel tip, the oder end a rigid, hardened steel tip with a Ø 4mm lamelle-basket
• the tip pr...

safety test probes SPS by Schützinger

SPS 2381

• with axial safety socket
• socket Ø 4mm
• both ends can be used individually. One end has a 5mm spring loaded steel tip, the oder end a rigid, hardened steel tip with a Ø 4mm lamelle-basket
• the tip protection cap is included
• contact parts Ni-plated
• several colours
• transition resistance: 5mΩ
• rated current: 32A
• rated voltage: 1000V (Cat. II)
• operating temperature range: -25°C...+80°C
• by Schützinger

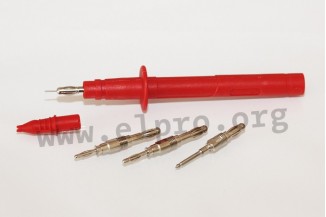

SET SPS 2040

• safety test probes with axial safety socket
• different probes inserts with the help of tip protection head screwable
• test probes PRÜF2013, -2015 and -2017 as well tip protection head SSK2002 is included
• PRÜF2013: used on both sides: one end has a 5mm spring loaded steel tip, the oder end a rigid, hardened steel tip
• PRÜF2015: single-sided use: with a Ø 4mm lamelle-basket
• PRÜF2017: single-sided use: with a Ø 2mm lamelle-basket
• SSK2001: with integrated IC test probe for 2.54mm pitch (DIL): as a tool for screwing of test probes usable
• contact parts Ni-plated
• insulation: PA 6.6 (polyamid)
• several colours
• transition resistance: 10mΩ
• rated current: 32A
• rated voltage: 1000V (Cat. II)
• operating temperature range: -25°C...+70°C
• by Schützinger
