safety quick-release terminals ESD798, SDK5230 by Schützinger

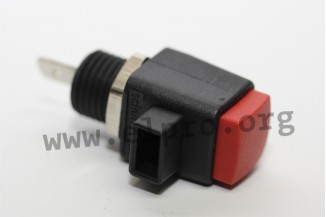

ESD 798
• fully insulated
• for metal panels
• panel thickness: 0.8...7mm
• terminal: FR 6.3x0.8mm or soldering
• insertion windows: 8x4mm
• connecting tab: 6.3x0.8mm
• several colours

SDK 5230...

safety quick-release terminals ESD798, SDK5230 by Schützinger

ESD 798
• fully insulated
• for metal panels
• panel thickness: 0.8...7mm
• terminal: FR 6.3x0.8mm or soldering
• insertion windows: 8x4mm
• connecting tab: 6.3x0.8mm
• several colours

SDK 5230
• fully insulated
• for metal panels
• panel thuckness: 0.8...5mm
• terminal: soldering loop or cable lug
• insertion window: 12.5x4mm
• several colours

• contact parts Ni-plated
• insulation: PA 6.6 (polyamid)
• max. torque for nuts
ESD 798: 85Ncm
SDK 5230: 120Ncm
• spring force: 20N
• max. transition resistance:
ESD 798: 3mΩ
SDK 5230: 5mΩ
• rated current: 16A
• rated voltage: 300V (Cat. II)
• operating temperature range: -25°C...+90°C
• by Schützinger
