safety built-in sockets, 4 mm system

• by Hirschmann
• contact: 4mm socket
• contact-proof
• contact material: beass, gold-plated
• housing: polyamide (UL 94 V-2)
• installation hole: Ø 12.2mm
• norm: IEC 61010
• category: CAT II
• operating temperature r...

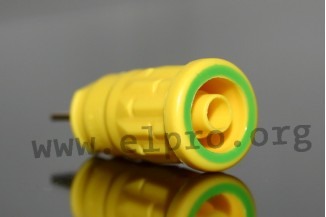

safety built-in sockets, 4 mm system

• by Hirschmann
• contact: 4mm socket
• contact-proof
• contact material: beass, gold-plated
• housing: polyamide (UL 94 V-2)
• installation hole: Ø 12.2mm
• norm: IEC 61010
• category: CAT II
• operating temperature range: -40...+80°C

SEB 2600-G
• 4mm built-in socket
• M4 screw connection
• for installation into switch-panels and equipment chassis with wall thicknesses up to 6mm
• rated voltage: 1000V AC/DC
• rated current: 32A
• resistance: 5mΩ
• tightening torque: 50Ncm

SEP 2610 F 4,8
• 4mm press-in socket
• 4.8x0.8 tab connector complying with DIN 46 244
• for installation into switch-panels with wall thicknesses of 1-10mm
• rated voltage: 1000V AC/DC
• rated current: 24A
• resistance: 5mΩ

SEB 2620-F 6,3
• 4mm built-in socket
• 6.3x0.8 tab connector complying with DIN 46 244
• for installation into switch-panels and equipment chassis with wall thicknesses up to 6mm
• rated voltage: 1000V AC/DC
• rated current: 32A
• resistance: 5mΩ
• tightening torque: 50Ncm

SEP 2630 S1,9
• 4mm press-in socket
• soldering spike 1,9mm
• for installation into switch-panels with wall thicknesses of 1-10mm
• rated voltage: 1000V AC/DC
• rated current: 24A
• resistance: 5mΩ
• entry chamfer: 0,5x45 Grad
