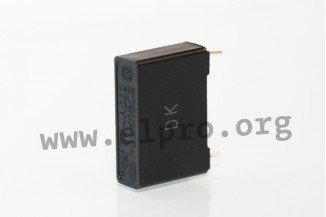

MKP- ECQUA metallized film capacitors by Panasonic

* series: ECQUA
* wound technology
* class X2
* style: bulk
* by Panasonic
* compact
* equipped with a safety mechanism
* flame-retardant plastic case
* non-combustible resign
* high insulation resistance...

MKP- ECQUA metallized film capacitors by Panasonic

* series: ECQUA
* wound technology
* class X2
* style: bulk
* by Panasonic
* compact
* equipped with a safety mechanism
* flame-retardant plastic case
* non-combustible resign
* high insulation resistance
* rated voltage (50/60Hz): 275V AC
* capacitance tolerance: ±10%
* temperature range: -40...+110°C
insulation resistance
* C<0,33µF: >15x103 MΩ (20°C, 100VDC, 60s)
* C>0,33µF: >5x103 MΩ (20°C, 100VDC, 60s)
* C<0,47µF: >2x103 MΩ (20°C, 500VDC, 60s)
dissipation factor tan d (1kHz, 20°C)
* C<1 µF: <1,0%
* C>1 µF: <2,0%

> More
Data Sheet
