> Passive elements>Terminals>DIN rail terminals>PTR terminal blocks, 2,5mm², for DIN rail, SR2.5 series

Manufacturers

DIN rail terminals

• reliable connection of the conductor without any special preparation
• vibration-proof and gastight connections
• connect and disconnect of the conductor by using a screw-driver
• by PTR Messtechnik

SR 2.5
• colour: beige or blue
• ...

DIN rail terminals

• reliable connection of the conductor without any special preparation
• vibration-proof and gastight connections
• connect and disconnect of the conductor by using a screw-driver
• by PTR Messtechnik

SR 2.5
• colour: beige or blue
• rated voltage UL, CSA: 600V
• rated voltage IEC 947-7-1: 800V
• rated current UL, CSA: 20A
• rated current IEC 947-7-1: 24A
• max. rated cross section, solid wire: 0.2 to 4mm²
• max. rated cross section, stranded wire: 0.2 to 2.5mm²
• dimensions: 48x5x52mm
• stripped length: 7mm
• tightening torque: 0.7Nm

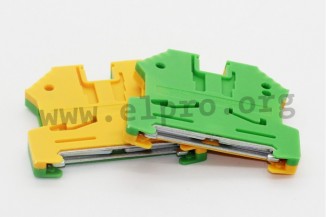

SRSL 2,5-T35
• color: green/yellow
• max. rated cross section, solid wire: 0.2 to 4mm²
• max. rated cross section, stranded wire: 0.2 to 2.5mm²
• dimension: 52x6x52mm
• stripped lenght: 10mm
• tightening torque: 0.7Nm

> More
--
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • PTR
    SR 2,5 beige by PTR
    0,364 €
    13909 SR 2,5 beige SR 2.5 BEIGE SR 2.5 BEIGE
    0,364 €

    More
    Stock: 96
  • PTR
    SR 2,5 blau by PTR
    0,658 €
    13910 SR 2,5 blau SR 2.5 BLAU SR 2.5 BLAU
    0,658 €

    More
    Stock: 185
  • PTR
    41056.2, PTR terminal blocks, 2,5mm², for DIN rail, SR2.5 series
    1,33 €
    13913 SRSL 2,5-T35 SRSL 2.5-T35 GRUEN/GELB SRSL 2.5-T35 GRUEN/GELB
    1,33 €

    More
    Stock: 334
Showing 1 - 3 of 3 products
