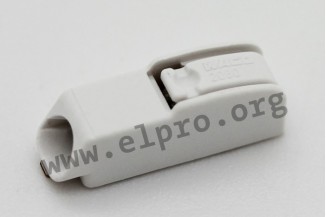

Wago SMD spring force terminal, board-to-board link
and operating tool series 2060

SMD spring force terminals 2060-451/998-404, 2060-452/998-404, 2060-453/998-404 and 2060-852/998-404:

  • with push-in CAGE CLAMP® connection technology
  • without lever
  • conductor: horizontal
  • 1- to 3-pole
  • rated voltage: 160V or 630V
  • rated current: 9A
  • nominal cross section solid-core wire: 0,2mm² to 0,75mm²
  • nominal cross section fine-stranded wire: 0,2mm² to 0,75mm²
  • strip length: 7mm to 9mm
  • pitch: 4mm or 8mm
  • operating temperature: -60°C to +105°C
  • insulating material: Polyphtalamide (PPA GF)
  • flammability class: UL94-0
  • color: white
  • taped

Board-to-board links 2060-901, 2060-902 and 2060-903:

  • for SMD spring force terminal series 2060
  • pitch: 4mm
  • 1- to 3-pole
  • rated voltage: 160V
  • rated current: 9A
  • insulating material: Polyamide 6.6 (PA 6.6)

Operating tools 2060-189:

  • for SMD spring force terminal series 2060
  • made of insulating material
