Stelvio Kontek spring terminal block series MRT1 P5

* with lever
* conductor: horizontal
* pitch: 5mm
* 2- and 4-pole
* by Stelvio Kontek
* rated voltage (EN 60998): 250V AC
* rated current: 10A
* rated cross section single stranded wire: 0.5 to 1.5mm²...

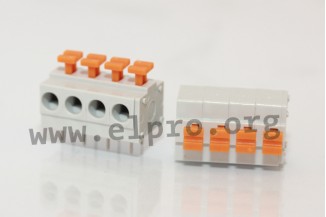

Stelvio Kontek spring terminal block series MRT1 P5

* with lever
* conductor: horizontal
* pitch: 5mm
* 2- and 4-pole
* by Stelvio Kontek
* rated voltage (EN 60998): 250V AC
* rated current: 10A
* rated cross section single stranded wire: 0.5 to 1.5mm²
* rated cross section fine stranded wire: 0.5 to 1.5mm²
* stripped length: 10mm
* insulating material: PA
* temperature range: -30 to +120°C
* flammability class: UL94V-0
* colour: grey

> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Stelvio
    MRT1 P5/2 grau
    0,29 €
    39274 MRT1 P5/2 grau MRT1P5/2GR MRT1P5/2GR
    0,29 €
    Stock: 1
Showing 1 - 1 of 1 product
