Wago spring terminal block series 250

* with lever
* wire entry angle: 45°
* pitch: 3.5mm
* staggered poles
* 2- to 12-pole
* by Wago
* rated voltage: 250V
* rated current: 8A
* rated cross section single stranded wire: 0.2 to 1.5mm2
* rated cross secti...

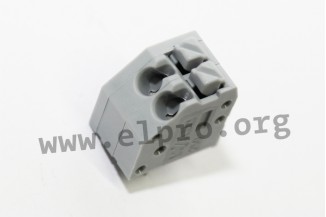

Wago spring terminal block series 250

* with lever
* wire entry angle: 45°
* pitch: 3.5mm
* staggered poles
* 2- to 12-pole
* by Wago
* rated voltage: 250V
* rated current: 8A
* rated cross section single stranded wire: 0.2 to 1.5mm2
* rated cross section fine stranded wire: 0.2 to 1.5mm2
* stripped length: 8.5 to 9.5mm
* insulating material: PA 6.6
* temperature range: -60 to +105°C
* flammability class: UL94V-0
* colour: grey

> More
Data Sheet
