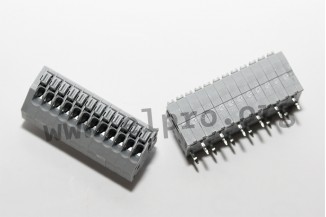

Wago spring terminal block series 250

  • spring force terminals with a lever and staggered poles
  • 45° wire entry angle
  • in grey
  • with 2-, 3-, 4-, 5-, 6-, 8-, 10-, 11- or 12-poles
  • insulator made of PA 6.6 (UL94V-0)
  • rated cross section single stranded wi...

Wago spring terminal block series 250

  • spring force terminals with a lever and staggered poles
  • 45° wire entry angle
  • in grey
  • with 2-, 3-, 4-, 5-, 6-, 8-, 10-, 11- or 12-poles
  • insulator made of PA 6.6 (UL94V-0)
  • rated cross section single stranded wire: 0,14 to 0,5mm2
  • rated cross section fine stranded wire: 0,2 to 0,5mm2
  • rated voltage: 160V
  • rated current: 4A
  • pitch: 2,5mm
