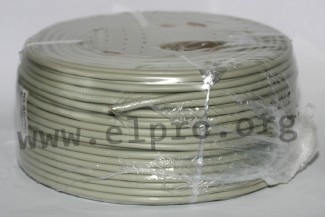

PVC control cables

Twisted and shielded PVC control cables in the colour grey (RAL 7032). They have a rated voltage of 300V and a test voltage of more than 1.5kV. We offer the following types of this Klasinger series: LIYCY 4x0,14 grey, LIYCY 6x0,...

PVC control cables

Twisted and shielded PVC control cables in the colour grey (RAL 7032). They have a rated voltage of 300V and a test voltage of more than 1.5kV. We offer the following types of this Klasinger series: LIYCY 4x0,14 grey, LIYCY 6x0,14 grey, and LIYCY 8x0,14 grey.

  • screening, Cu plaited, tinned: 85%
  • conductor insulation: PVC YI 2
  • conductor colours: DIN 47 100
  • conductor composition: 18x0.1mm
  • outer jacket: PVC YM 2
  • flammability: flame resistant IEC332.1
  • temperature range moving: -10 to +70°C
  • temperature range stationary: -30 to +80°C
  • insulation resistance, min.: 20MΩxkm
  • conductor resistance, max.: 135Ω/km
  • delivery quantity: 100-meter ring
  • price corresponds to one meter
