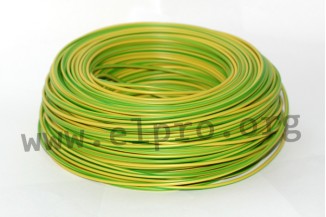

PVC stranded hook-up wires, 0.75mm²

Harmonized PVC stranded hook-up wires for internal wiring of devices, being used to wire lighting, tubes, surfaces and concealed installations for signal systems. This device has a stranded copper wire conductor...

PVC stranded hook-up wires, 0.75mm²

Harmonized PVC stranded hook-up wires for internal wiring of devices, being used to wire lighting, tubes, surfaces and concealed installations for signal systems. This device has a stranded copper wire conductor according to VDE 0295 class 5, is insulated with PVC TI 1 according to HD 21.1 S3, and the conductor identification meets VDE 0293. We offer various types of this series.

  • outer diameter: 2.3mm
  • rated voltage, UO / U: 300V/500V
  • test voltage: 2000V
  • conductor cross-section: 0.75mm²
  • conductor composition: 24x0.195mm
  • minimum bend radius: 4 x diameter
  • temperature range fixed installation: -40 to +70°C
  • temperature range at installation: +5 to +70°C
  • delivery quantity: 100-meter ring
  • price corresponds to one meter
