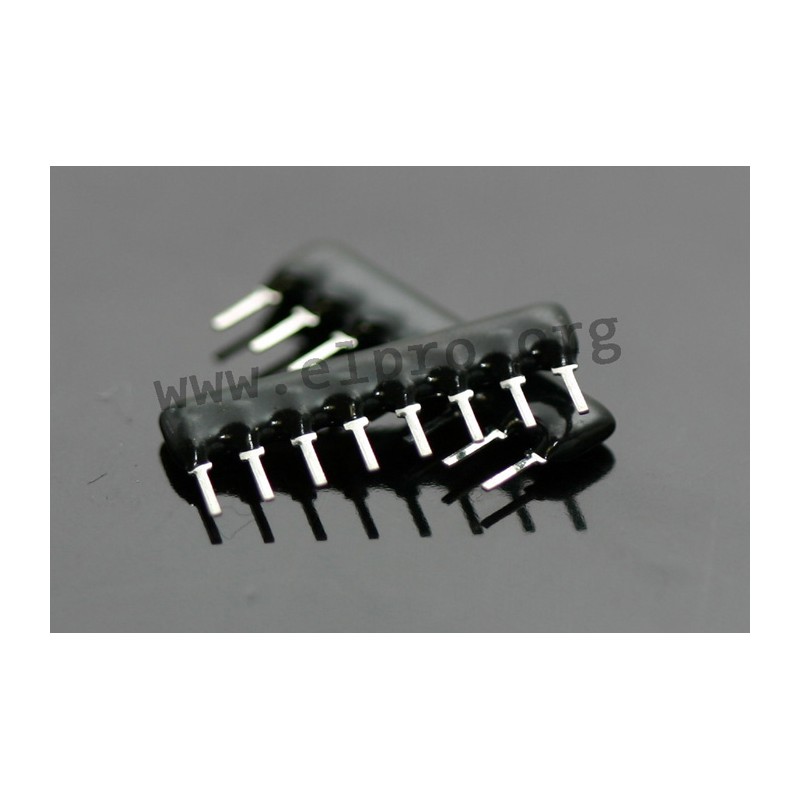

NW 08-3 1 k

resistor networks

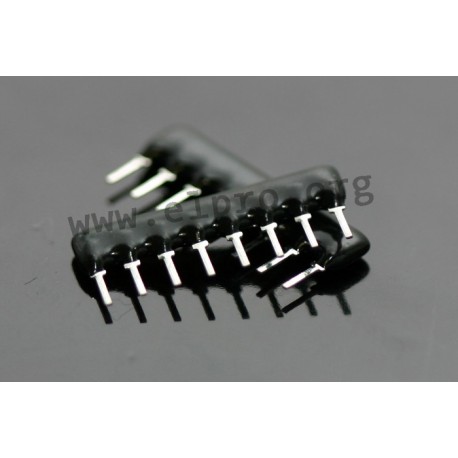

• with 4 resistors and 8 pins
• power: 0.2W
• tolerance: ±5%
• single inline (SIL) housing


• operating voltage Umax.: 100V
• operating temperature range: -55...+125°C
• compact size
• high stability

NW 08-3 1 k

10081 NW 08-3 1 k NW 08-3 1 k resistor networks. • with 4 resistors and 8 pins• power: 0.2W• tolerance: ±5%• single inline (SIL) housing • operating voltage Umax.: 100V• operating temperature range: -55...+125°C• compact size• high stability

Specifications

Resistance [Ω] 1k
Power [W] 0,2
Tolerance [%] 5

Unit price

0,113 €

Stock: 900
Next incoming goods:
CW 04/2025
5000 units


Further delivery:
CW 11/2025

Minimum order quantity 100 units or
multiples of 100.
