Schaffner PCB filter series FN406 / FN406B

Single-phase RFI filters in an aluminium housing with a very low profile. These line filters are suitable for PCB mounting and comply with EN60939. We offer the following types of this Schaffner series: F...

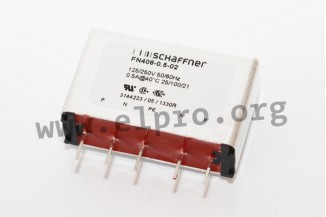

Schaffner PCB filter series FN406 / FN406B

Single-phase RFI filters in an aluminium housing with a very low profile. These line filters are suitable for PCB mounting and comply with EN60939. We offer the following types of this Schaffner series: FN406-0.5-02, FN406-1-02, FN406-3-02, FN406-6-02, FN406-8.4-02, FN406B-0.5-02, FN406B-1-02, FN406B-3-02, FN406B-6-02, and FN406B-8.4-02.

  • rated current: 0,5 to 8,4A
  • maximal leakage current: 373µA
  • dielectric strength line/ground: 2kV AC
  • dielectric strength line/line: 760V AC
  • operating temperature: -25 to +100°C
  • FN406B_ is suitable for application in medical settings (without Y2 capacitor)
> More
Data Sheet
Showing 1 - 10 of 10 products
Showing 1 - 10 of 10 products
