Schaffner RFI filter series FN2060 / FN2060B and FN2070 / FN2070B

Single phase RFI filters in a metal housing with a tab terminal (6,3x0,8mm) and a compact size. These two-stage filters are suitable for various applications as well as for a wide o...

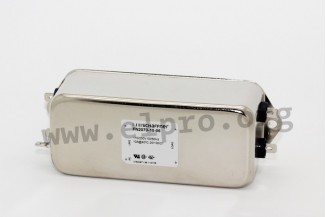

Schaffner RFI filter series FN2060 / FN2060B and FN2070 / FN2070B

Single phase RFI filters in a metal housing with a tab terminal (6,3x0,8mm) and a compact size. These two-stage filters are suitable for various applications as well as for a wide operating temperature range. We offer the following types of this Schaffner series: FN2060-1-06, FN2060-3-06, FN2060-6-06, FN2060-10-06, FN2060-12-06, FN2060-16-06, FN2060-20-06, FN2060-30-08, FN2060B-1-06, FN2060B-3-06, FN2060B-6-06, FN2060B-10-06, FN2060B-12-06, FN2060B-16-06, FN2060B-20-06, FN2060B-30-08, FN2070-1-06, FN2070-3-06, FN2070-6-06, FN2070-10-06, FN2070-12-06, FN2070-16-06 und FN2070-25-08, FN2070B-1-06, FN2070B-3-06, FN2070B-6-06, FN2070B-10-06, FN2070B-12-06, FN2070B-16-06, FN2070B-25-08, and FN2070B-36-08.

  • rated current: 1 to 36A
  • maximal continuous operating voltage: 250V AC (50/60Hz), 250V DC
  • dielectric strength line/ground: 2kV AC
  • dielectric strength line/neutral: 1,1kV DC
  • operating temperature: -25 to +100°C
  • FN2060B_ and FN2070B_ are suitable for application in medical settings
> More
Data Sheet
--
