Schaffner RFI filter series FN2010 / FN2010B and FN2030 / FN2030B

Single phase RFI filters in a metal housing with 6,3x0,8mm tab terminals and a compact size. These one-stage filters are suitable for a wide range of applications. They have a high ...

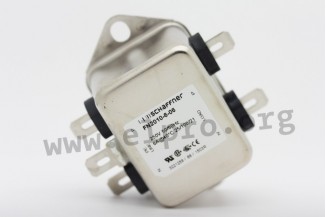

Schaffner RFI filter series FN2010 / FN2010B and FN2030 / FN2030B

Single phase RFI filters in a metal housing with 6,3x0,8mm tab terminals and a compact size. These one-stage filters are suitable for a wide range of applications. They have a high dielectric strength and are suitable for a wide operating temperature range. We offer the following types of this Schaffner series: FN2010-1-06, FN2010-3-06, FN2010-6-06, FN2010-10-06, FN2010-12-06, FN2010-16-06, FN2010-20-06, FN2010B-1-06, FN2010B-3-06, FN2010B-6-06, FN2010B-10-06, FN2010B-16-06, FN2010B-20-06, FN2030-1-06, FN2030-3-06, FN2030-4-06, FN2030-6-06, FN2030-8-06, FN2030-10-06, FN2030-12-06, FN2030-16-06, FN2030-20-06, FN2030-20-08, FN2030-30-08, FN2030B-1-06, FN2030B-3-06, FN2030B-4-06, FN2030B-6-06, FN2030B-8-06, FN2030B-10-06, FN2030B-12-06, FN2030B-16-06, FN2030B-20-06, FN2030B-20-08, and FN2030B-30-08.

  • rated current: 1 to 30A
  • dielectric strength line/ground: 2kV AC
  • dielectric strength line/ground B type: 2,5kV AC
  • dielectric strength line/neutral: 1,1kV DC
  • operating temperature: -25 to +100°C
  • FN2010B_ and FN2030B_ are suitable for application in medical settings
