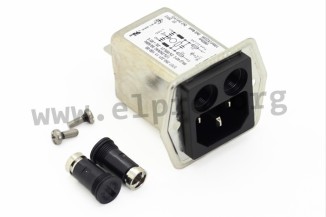

Schurter RFI filter series 5707

RFI filters in a metal housing (IP65) with a 2-pole fuse holder (5x20mm). These line filters have a faston plug terminal 6,3x0,8mm and are suitable for screw or rivet mounting. We offer the following types of this S...

Schurter RFI filter series 5707

RFI filters in a metal housing (IP65) with a 2-pole fuse holder (5x20mm). These line filters have a faston plug terminal 6,3x0,8mm and are suitable for screw or rivet mounting. We offer the following types of this Schurter series: 5707.0201.312 and 5707.0801.312.

  • rated current: 2 to 8A
  • rated voltage: 250V (50/60Hz)
  • dielectric strength line/ground: >2,7kV DC
  • dielectric strength line/line: >1,7kV DC
  • operating temperature: -25 to +85°C
> More
Data Sheet
