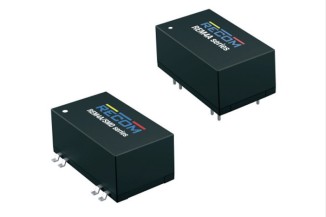

Recom DC/DC converters series REM4A

DC/DC converters in a DIP16- or SMD housing, and with a standard input voltage ratio of 2:1. They are equpped with a remote function, as well as they are protected against short circuit and over voltage. These v...

Recom DC/DC converters series REM4A

DC/DC converters in a DIP16- or SMD housing, and with a standard input voltage ratio of 2:1. They are equpped with a remote function, as well as they are protected against short circuit and over voltage. These voltage converters confirm with the safety norms EN 62368-1, UL 62368-1, EN 60601-1, and ANSI/AAMI ES 60601-1. We offer the following types of this Recom series: REM4A-0505S, REM4A-1205S, REM4A-1212S, REM4A-0505S/SMD, REM4A-1205S/SMD, REM4A-1212S/SMD,  REM4A-0515S, REM4A-2405S, REM4A-0515S/SMD, and REM4A-2405S/SMD.

  • single output
  • current: 4W
  • output voltage tolerance: ±1%
  • maximal ripple quality: 50mVp-p
  • isolation voltage (I/P-O/P): 5000 V DC
  • operating temperature: -40 to +105°C
  • dimensions: 24,3x14,4x10,2 mm
  • weight: 7g
> More
Data Sheet
